A Retroreflectometer is used to check the performance of retroreflective tape. Every roll of tape is tested to ensure it meets and exceeds the standard requirements. The retroflectometer measures the coefficient of two rotating angles. EN ISO 20471 states the reading should not be below 330 (cd/lx.m2) however at Portwest they insist on a reading of 400 (cd/lx.m2) plus.
A spectrophotometer is used to check the chromaticity – “colour intensity” – of fabric. They use this to ensure every roll of fabric meets the requirements of EN ISO 20471 and RIS-3279-TOM.
RIS imposes a higher concentration for high visibility orange fabric for railway workers. This increases the conspicuous nature of the fabric and ensures that the rail worker is more visible.
Reflective tape must be at least 50mm wide. Bands of reflective tape must be positioned at least 50mm apart.
Reflective tape must be positioned 50mm or more from the end of sleeve or leg.
Reflective tape must encircle torso and/or limbs to be included in the calculation of the necessary square area of reflective tape. A gap (for fastening system or seam) in the band of reflective tape must be 50mm or less. The total amount of such gaps in every band must not exceed 100mm around the torso and 50mm around the sleeves and legs.
Highest level of protection - required for any persons working on or near motorways, dual-carriage ways or airports. Must incorporate a minimum of 0.80m2 of background material and 0.20m2 of retroreflective materials. (4 metres of 5cm wide reflective tape)
Required for any persons working on or near A and B class roads, also for delivery drivers. Must incorporate a minimum of 0.50m2 of background material and 0.13m2 of retro-reflective material. (2.60 metres of 5cm wide reflective tape)
Minimum level of protection required for any persons working on a private road or to be used in conjunction with a higher classed garment. Must incorporate a minimum of 0.14m2 of background material and 0.10m2 of retroreflective material. (2 metres of 5cm wide reflective tape)
L.E.D: stands for ""Light Emitting Diode"", an L.E.D is a small piece of semi conducting material that contains various compounds. When electricity is passed through these semi conductive materials light is emitted in the form of photons. This process is call electro-luminescence.
An L.E.D light can produce the same amount of lumens as an incandescent while using only 25% of the power. Up to 90% of incandescent lights energy is heat created by electrical resistance filament (i.e they are more efficient as heaters than lights).
RoHS - Restriction Of Hazardous Substances’. The 'Restriction Of Hazardous Substances' directive is put in place to ensure all components of our electrical products will not endanger the user. All Portwest lights are tested to this standard with compliance.
CE - This symbol indicates conformity of essential health and safety requirements as set out in European directives.
This is a railway group standard that specifies the minimum specification for high-visibility warning clothing in the UK Rail Industry ensuring workers are conspicuous when on or near railway lines.
RIS-3279-TOM is based on the European standard EN ISO 20471. It defines the minimum areas of high-visibility orange background materials to be used within a garment and the minimum level of photometric performance criteria for the reflective tape. The standard requires a reflective tape reading of ≥ 330 (cd/ lx.m2), however Portwest insist on a reading of ≥ 400 (cd/ lx.m2).
RIS-3279-TOM imposes a higher concentration for high-visibility orange fabric for railway workers. This increases the conspicuous nature of the fabric and ensures the rail worker is more visible. A spectrophotometer is used to check the chromaticity (colour intensity) of the orange high-visibility fabric. Portwest check every roll of fabric to ensure the fabric meets the requirements of RIS-3279-TOM.

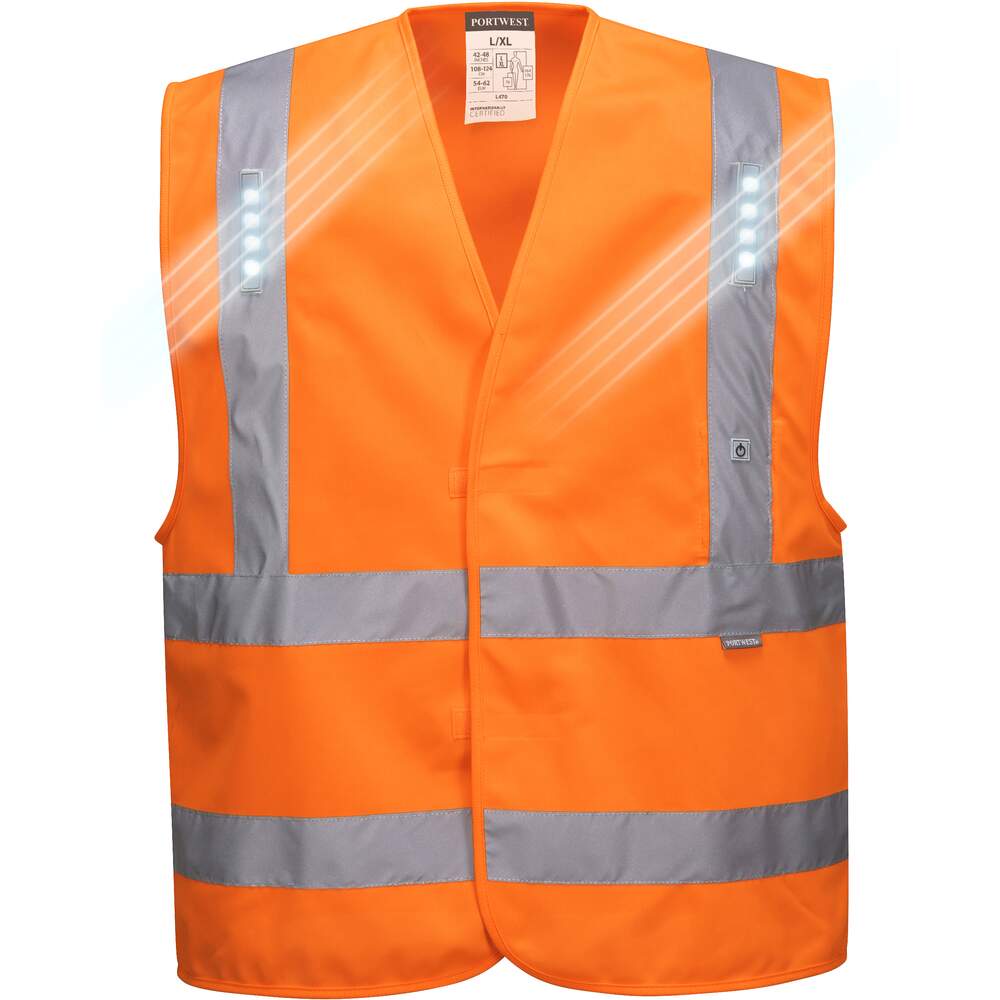

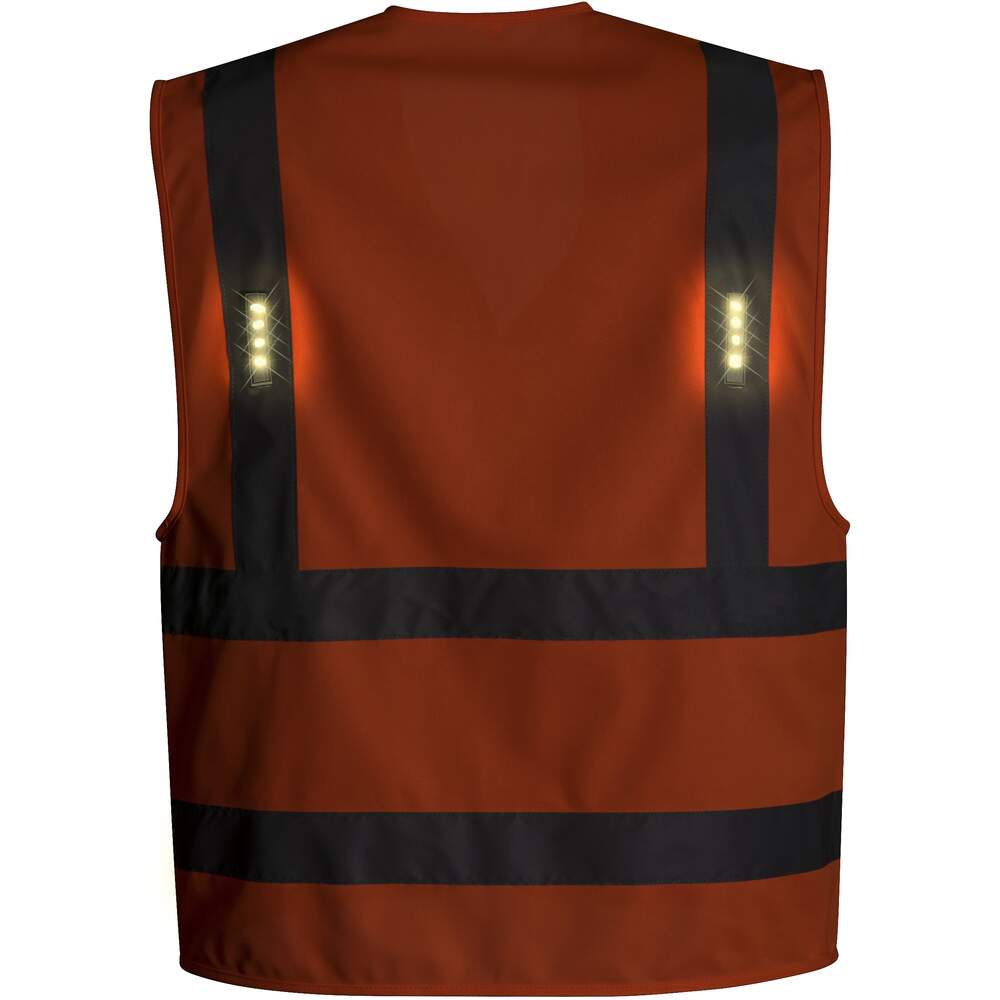

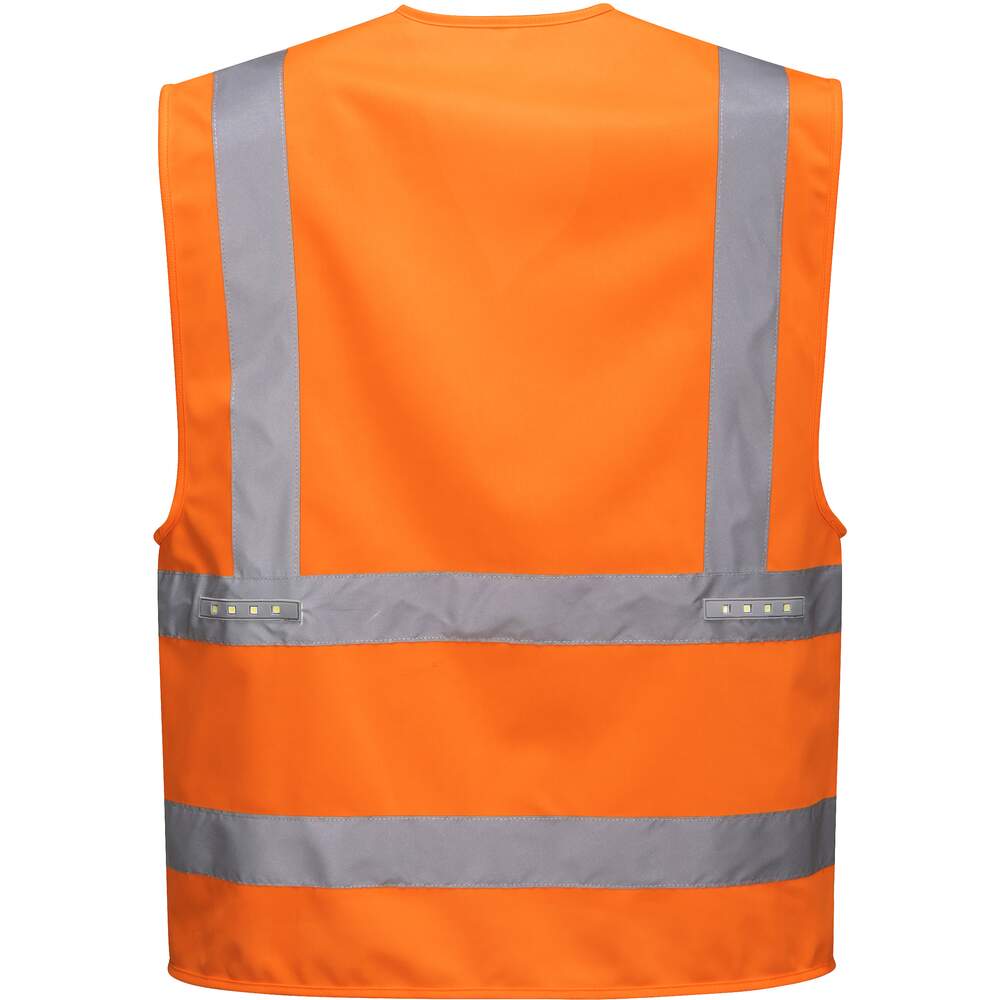

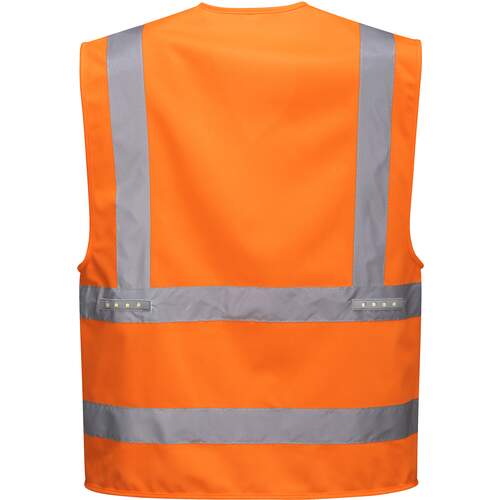

Be seen in all lighting conditions with the state-of-the-art Portwest Vega LED Vest in Orange. This vest takes visibility to the next level by incorporating innovative integrated LED lights into its high-visibility material, alongside the HiVisTex reflective tape. Adhering to high safety standards, it is ideal for working in environments with low to no light. Discover the standout features of this safety vest below:
Key Features:
Unique Selling Proposition (USP):
Compliance:
With the Portwest Vega LED Vest in Orange, you do not just wear a vest; you adorn a shield of visibility that stands tall in all lighting conditions. It not only promises safety but delivers on comfort and ease of use, making it a preferred choice for professionals across different fields. Step out with confidence, knowing that you are protected by a vest that leads in safety and innovation.
Be seen in all lighting conditions with the state-of-the-art Portwest Vega LED Vest in Orange. This vest takes visibility to the next level by incorporating innovative integrated LED lights into its high-visibility material, alongside the HiVisTex reflective tape. Adhering to high safety standards, it is ideal for working in environments with low to no light. Discover the standout features of this safety vest below:
Key Features:
Unique Selling Proposition (USP):
Compliance:
With the Portwest Vega LED Vest in Orange, you do not just wear a vest; you adorn a shield of visibility that stands tall in all lighting conditions. It not only promises safety but delivers on comfort and ease of use, making it a preferred choice for professionals across different fields. Step out with confidence, knowing that you are protected by a vest that leads in safety and innovation.
Be seen in all lighting conditions with the state-of-the-art Portwest Vega LED Vest in Orange. This vest takes visibility to the next level by incorporating innovative integrated LED lights into its high-visibility material, alongside the HiVisTex reflective tape. Adhering to high safety standards, it is ideal for working in environments with low to no light. Discover the standout features of this safety vest below:
Key Features:
Unique Selling Proposition (USP):
Compliance:
With the Portwest Vega LED Vest in Orange, you do not just wear a vest; you adorn a shield of visibility that stands tall in all lighting conditions. It not only promises safety but delivers on comfort and ease of use, making it a preferred choice for professionals across different fields. Step out with confidence, knowing that you are protected by a vest that leads in safety and innovation.
Specifications are subject to change - See Terms & Conditions for more info
Portwest has been independently rated by Ecovadis for its environmental, social, and ethical performance and achieved a gold rating, meaning they are in the top 5% of globally rated companies.
The pillars taken into consideration include the environment, labour practices and human rights, ethics, and sustainable procurement.
This product conforms with essential health and safety requirements as set out in European Directives.
This garment meets the rail industry standard for high visibility warning clothing.
