Reflective tape must be at least 50mm wide. Bands of reflective tape must be positioned at least 50mm apart.
Reflective tape must be positioned 50mm or more from the end of sleeve or leg.
Reflective tape must encircle torso and/or limbs to be included in the calculation of the necessary square area of reflective tape. A gap (for fastening system or seam) in the band of reflective tape must be 50mm or less. The total amount of such gaps in every band must not exceed 100mm around the torso and 50mm around the sleeves and legs.
Highest level of protection - required for any persons working on or near motorways, dual-carriage ways or airports. Must incorporate a minimum of 0.80m2 of background material and 0.20m2 of retroreflective materials. (4 metres of 5cm wide reflective tape)
Required for any persons working on or near A and B class roads, also for delivery drivers. Must incorporate a minimum of 0.50m2 of background material and 0.13m2 of retro-reflective material. (2.60 metres of 5cm wide reflective tape)
Minimum level of protection required for any persons working on a private road or to be used in conjunction with a higher classed garment. Must incorporate a minimum of 0.14m2 of background material and 0.10m2 of retroreflective material. (2 metres of 5cm wide reflective tape)
This European standard is part of a series of standards for test methods and requirements for electrostatic properties of protective clothing.
The standard specifies material and design requirements for garments used as part of a total earthed system, to avoid incendiary discharges.
The requirements may not be sufficient in oxygen enriched flammable atmospheres.
This European Standard is not applicable for specifying protection against main voltages.
Test method for measurement of surface resistivity. Surface resistance measures the conductivity between two points on the surface of a fabric. The lower the resistance the higher the conductivity, resulting in charge going to earth.
Test method for measurement of the electrical resistance through a material (vertical resistance). This is the level of conductivity when measured through the depth of a fabric.
Test methods for measurement of charge decay. Charge decay measures how long it takes for an electric current to dissipate. The quicker it dissipates the higher the anti-static properties of the garment.
Please note the EN 1149-4 Garment Test is under development.
EN 1149-5 specifies the performance and design requirements to avoid static discharge for all electrostatic dissipative protective clothing as part of an entire earthed system, shoes, clothing & floor. The material meets the requirements.
This international standard specifies the performance requirements for the limited flame spread properties of materials and protective clothing intended to protect workers against occasional brief contact with small flames.
There are 3 indices for limited flame spread protection under the standard. Depending on how the fabric performs during the test determines the index or level of protection.
EN ISO 14116 Testing Equipment
A specialist test rig is used for testing flame standards on materials under laboratory conditions. A small flame is applied to a fabric sample for 10 seconds and then removed. The condition of the fabric is then examined.
Index 1 - The lowest level of protection
The flame does not spread, there are no flaming debris, no afterglow but a hole may be formed
Index 2 - A higher level of protection
The flame does not spread, there are no flaming debris, no afterglow and there will be no hole formation.
Index 3 - The highest level of protection
At this level the flame does not spread, there are no flaming debris, no afterglow, no hole formation and it also specifies that the afterflame time for each individual sample garment is less than 2 seconds.

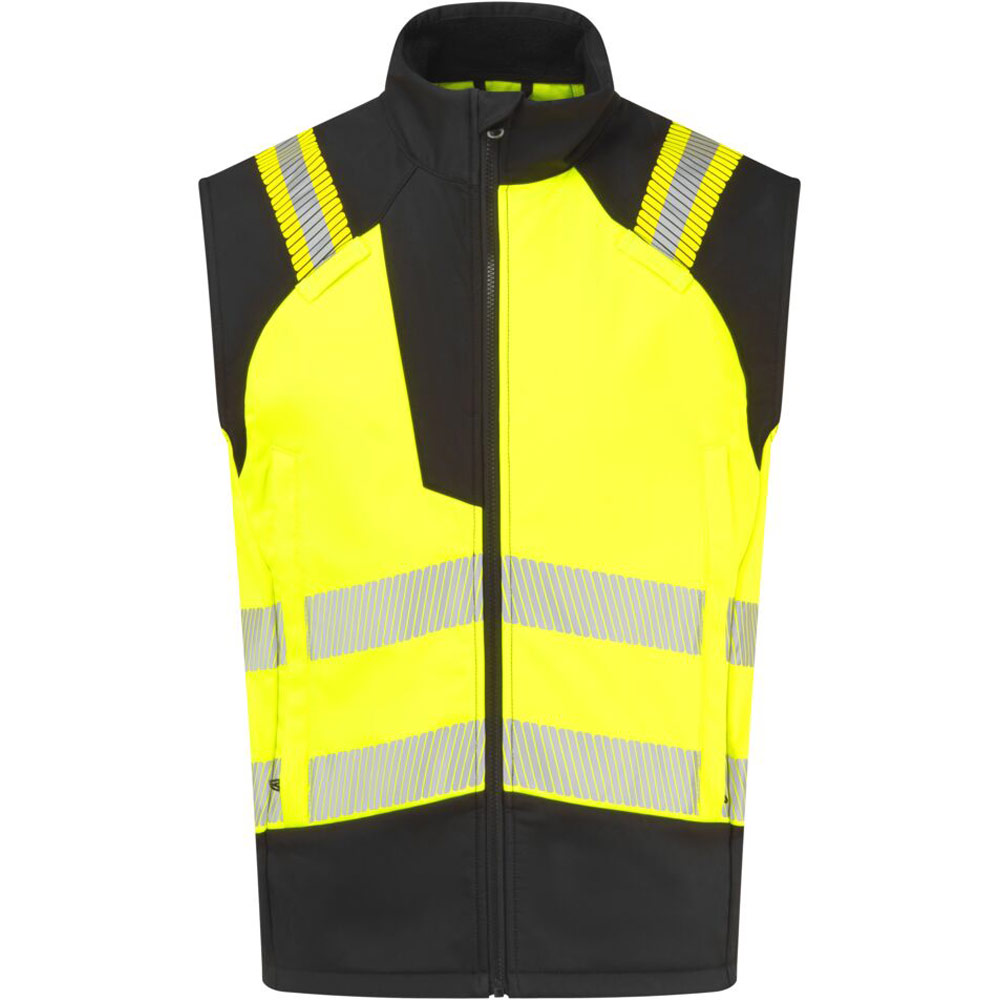

The PW3 FR Modaflame Hi-Vis Softshell Gilet is constructed from a highly protective 3 layer softshell fabric. Features include heat applied segmented tape, radio loops and zipped front pockets.
Specifications are subject to change - See Terms & Conditions for more info
Portwest has been independently rated by Ecovadis for its environmental, social, and ethical performance and achieved a gold rating, meaning they are in the top 5% of globally rated companies.
The pillars taken into consideration include the environment, labour practices and human rights, ethics, and sustainable procurement.
This product conforms with essential health and safety requirements as set out in European Directives.
This product has 3 layers - an outer, a mid, and an inner layer.
This garment is made of a high-performance breathable fabric.
This garment has a radio loop for easy attachment of a radio.
This garment features 2 pockets.
This product is a new addition to the range of Portwest products.
Data Sheet
