Static charge can build up on the body for a number of reasons including personal attire, atmospheric humidity and the way in which a person walks and moves. A build up of electrostatic discharge (ESD) can damage sensitive electronic components or create fire risks when handling solvents and other flammable materials.
In order for electrostatic sensitive devices (ESDS) to be handled with minimal risk of damage there are specific technical requirements for the design, use and control of an electrostatic protected area (EPA). This includes the use of ESD control items such as garments or footwear.
Compliant garments must be clearly marked and must completely cover all clothing in the arms and torso region. The point to point resistance over the outer surface must be less than 1012 Ω.
The point to point resistance is a measure of the conductivity of the material between two points. Conductive fibres in garments work by preventing the static charge build up by allowing it to dissipate through the conductive fibres and go to earth.
The lower the resistance the higher the conductivity and the lower the risk of electrostatic discharge.
This European standard is part of a series of standards for test methods and requirements for electrostatic properties of protective clothing.
The standard specifies material and design requirements for garments used as part of a total earthed system, to avoid incendiary discharges.
The requirements may not be sufficient in oxygen enriched flammable atmospheres.
This European Standard is not applicable for specifying protection against main voltages.
Test method for measurement of surface resistivity. Surface resistance measures the conductivity between two points on the surface of a fabric. The lower the resistance the higher the conductivity, resulting in charge going to earth.
Test method for measurement of the electrical resistance through a material (vertical resistance). This is the level of conductivity when measured through the depth of a fabric.
Test methods for measurement of charge decay. Charge decay measures how long it takes for an electric current to dissipate. The quicker it dissipates the higher the anti-static properties of the garment.
Please note the EN 1149-4 Garment Test is under development.
EN 1149-5 specifies the performance and design requirements to avoid static discharge for all electrostatic dissipative protective clothing as part of an entire earthed system, shoes, clothing & floor. The material meets the requirements.

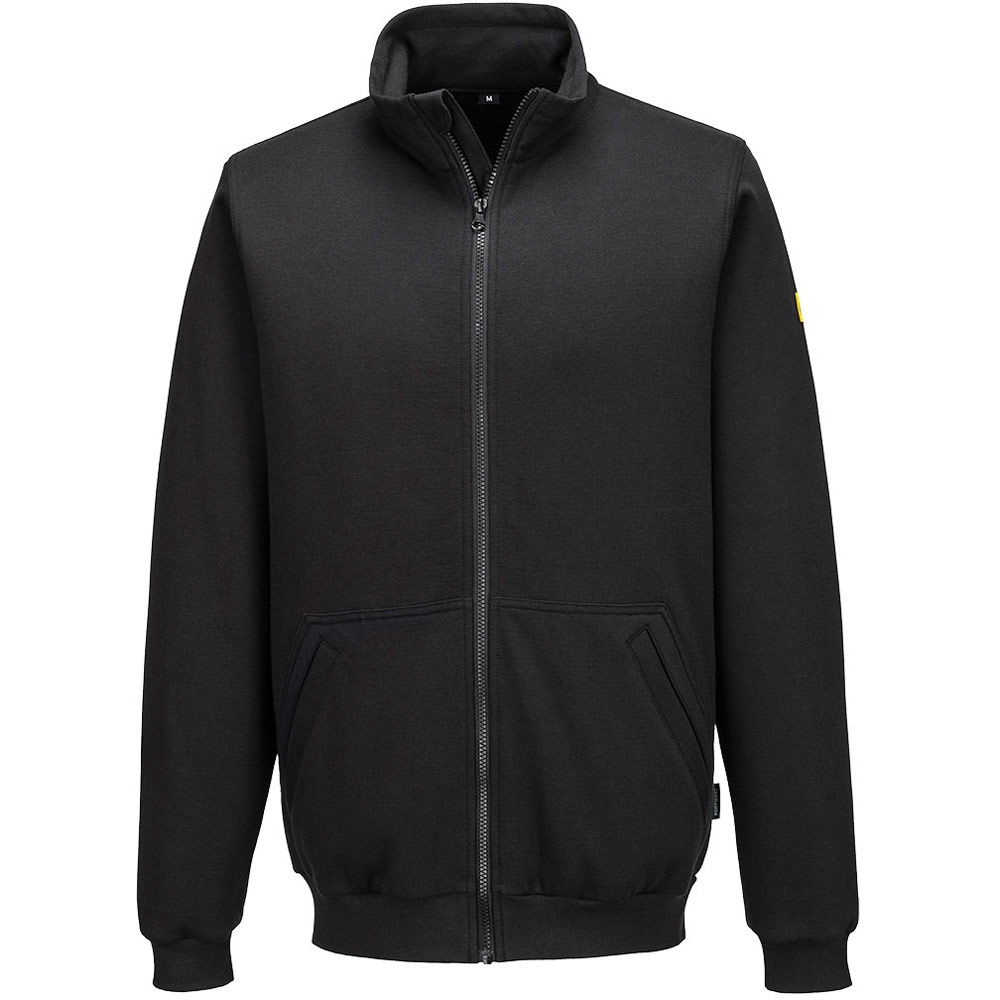

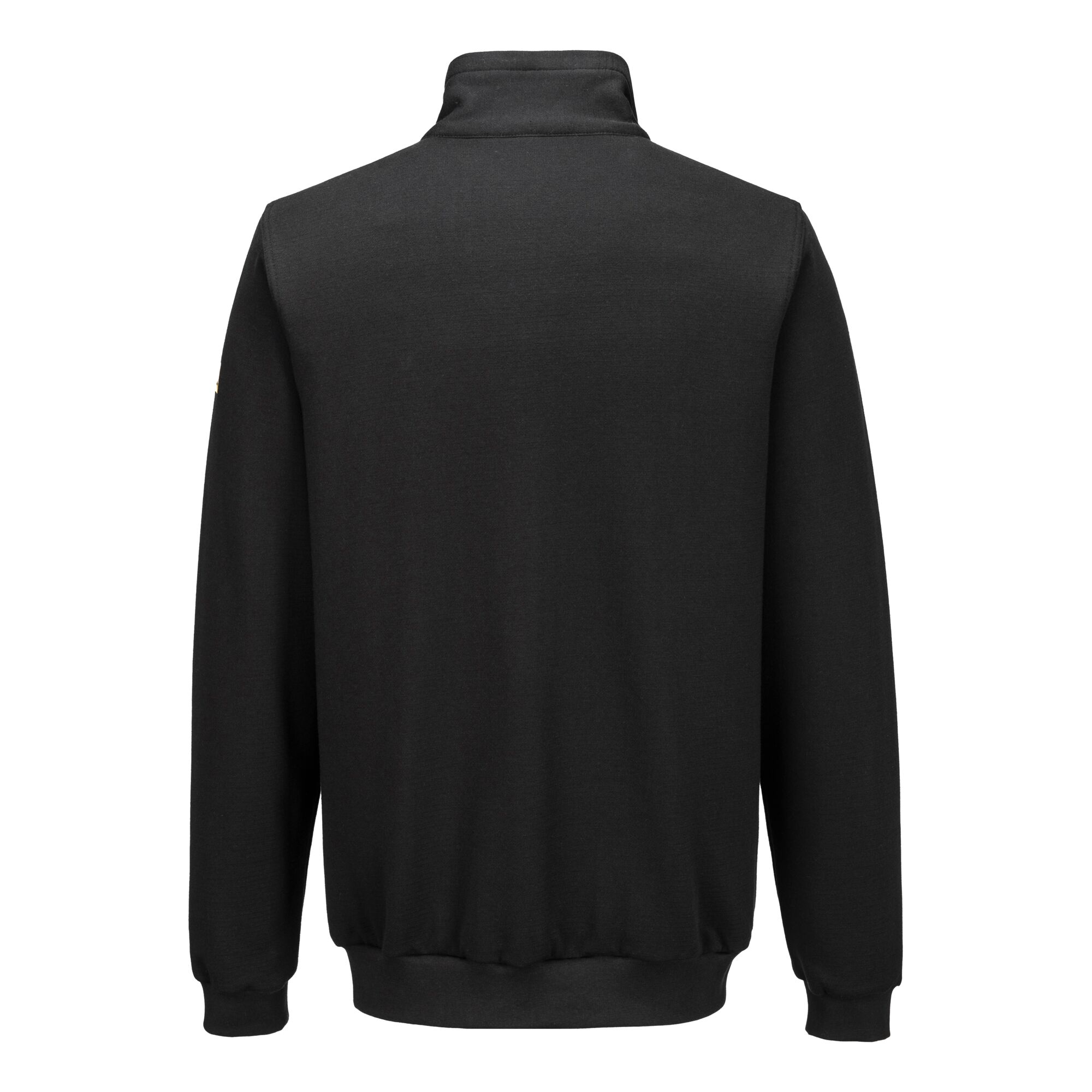

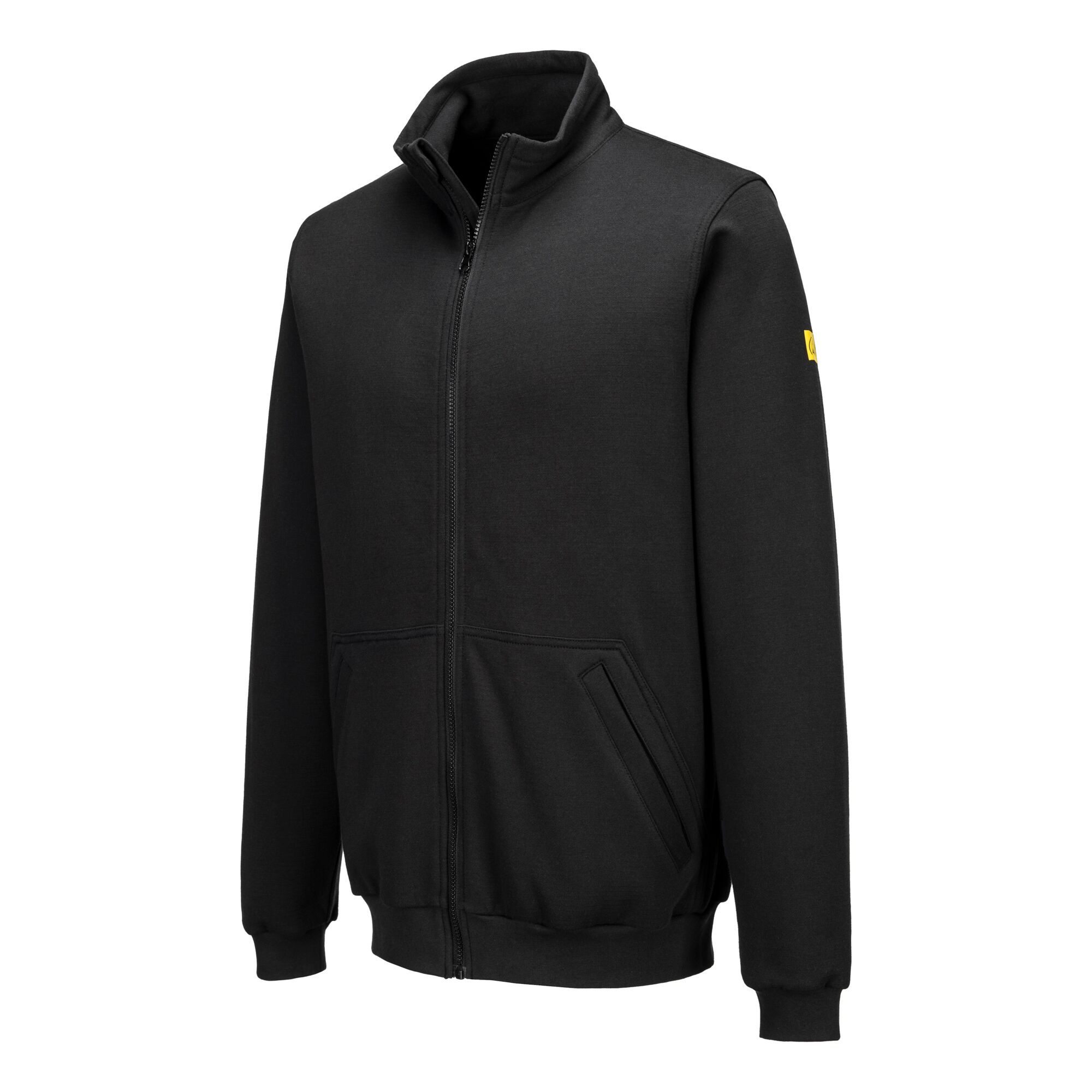

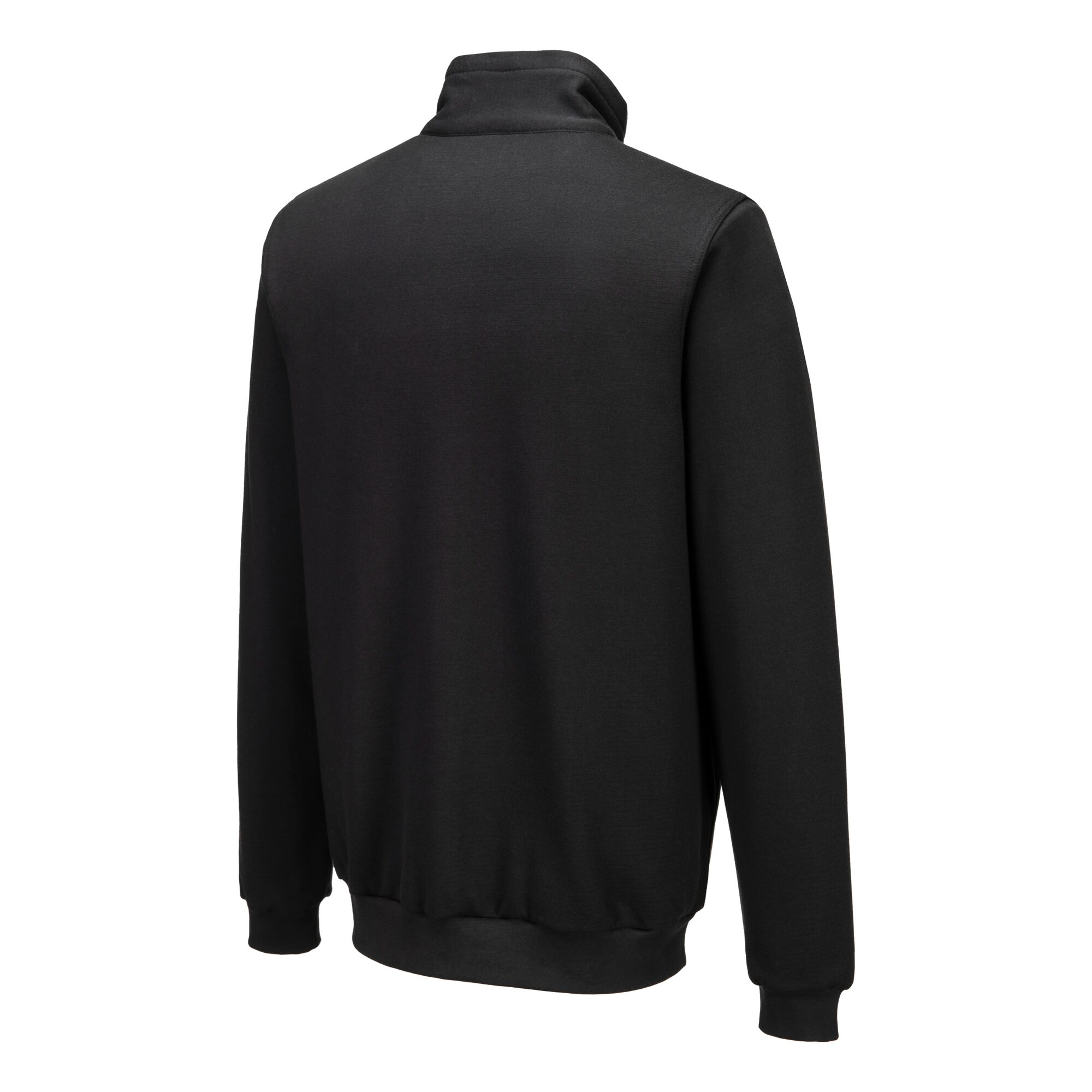

A stylish addition to our ESD range, the full front zip on this hoodie enables it to be taken on and off easily in busy ESD environments. Made from 96% Cotton 4% Carbon Fibre, the sweatshirt has a modern cut and a host of technical detail as well as being perfect for overbranding.
A stylish addition to our ESD range, the full front zip on this hoodie enables it to be taken on and off easily in busy ESD environments. Made from 96% Cotton 4% Carbon Fibre, the sweatshirt has a modern cut and a host of technical detail as well as being perfect for overbranding.
A stylish addition to our ESD range, the full front zip on this hoodie enables it to be taken on and off easily in busy ESD environments. Made from 96% Cotton 4% Carbon Fibre, the sweatshirt has a modern cut and a host of technical detail as well as being perfect for overbranding.
A stylish addition to our ESD range, the full front zip on this hoodie enables it to be taken on and off easily in busy ESD environments. Made from 96% Cotton 4% Carbon Fibre, the sweatshirt has a modern cut and a host of technical detail as well as being perfect for overbranding.
A stylish addition to our ESD range, the full front zip on this hoodie enables it to be taken on and off easily in busy ESD environments. Made from 96% Cotton 4% Carbon Fibre, the sweatshirt has a modern cut and a host of technical detail as well as being perfect for overbranding.
A stylish addition to our ESD range, the full front zip on this hoodie enables it to be taken on and off easily in busy ESD environments. Made from 96% Cotton 4% Carbon Fibre, the sweatshirt has a modern cut and a host of technical detail as well as being perfect for overbranding.
A stylish addition to our ESD range, the full front zip on this hoodie enables it to be taken on and off easily in busy ESD environments. Made from 96% Cotton 4% Carbon Fibre, the sweatshirt has a modern cut and a host of technical detail as well as being perfect for overbranding.
A stylish addition to our ESD range, the full front zip on this hoodie enables it to be taken on and off easily in busy ESD environments. Made from 96% Cotton 4% Carbon Fibre, the sweatshirt has a modern cut and a host of technical detail as well as being perfect for overbranding.
Specifications are subject to change - See Terms & Conditions for more info
Portwest has been independently rated by Ecovadis for its environmental, social, and ethical performance and achieved a silver rating, meaning they are in the top 25% of globally rated companies.
The pillars taken into consideration include the environment, labour practices and human rights, ethics, and sustainable procurement.
This product conforms with essential health and safety requirements as set out in European Directives.
This features a fully elasticated waistband on the trouser which allows for all-day comfort for the wearer.
This garment features 2 pockets.
This product is a new addition to the range of Portwest products.
