A Retroreflectometer is used to check the performance of retroreflective tape. Every roll of tape is tested to ensure it meets and exceeds the standard requirements. The retroflectometer measures the coefficient of two rotating angles. EN ISO 20471 states the reading should not be below 330 (cd/lx.m2) however at Portwest they insist on a reading of 400 (cd/lx.m2) plus.
A spectrophotometer is used to check the chromaticity – “colour intensity” – of fabric. They use this to ensure every roll of fabric meets the requirements of EN ISO 20471 and RIS-3279-TOM.
RIS imposes a higher concentration for high visibility orange fabric for railway workers. This increases the conspicuous nature of the fabric and ensures that the rail worker is more visible.
Reflective tape must be at least 50mm wide. Bands of reflective tape must be positioned at least 50mm apart.
Reflective tape must be positioned 50mm or more from the end of sleeve or leg.
Reflective tape must encircle torso and/or limbs to be included in the calculation of the necessary square area of reflective tape. A gap (for fastening system or seam) in the band of reflective tape must be 50mm or less. The total amount of such gaps in every band must not exceed 100mm around the torso and 50mm around the sleeves and legs.
EN343 is the European standard that applies to garments worn in adverse weather conditions. This standard specifies requirements and test methods applicable to the materials and seams of protective clothing against the influence of precipitation (e.g. rain, snowflakes), fog, and ground humidity.
The pictogram to the left indicates that protection against rain is offered.
The standard provides for two performance parameters of which there are 4 levels with Class 4 offering the highest level of protection.
EN342 is the European standard that applies to garments worn in cold environments. This standard specifies requirements and test methods for the performance of clothing ensembles (i.e two-piece suits/coveralls) for protection against the effects of cold environments equal to or below -5°C.
There are three main parameters:
(Example to the left refers to the Portwest Hi-Vis Bomber Jacket (S463) test results)
The manikin test measures the amount of energy required to maintain warmth. This result is expressed in square metres Kelvin per Watt (m2K/W) this result can be used to estimate the maximum wear time based on the activity level of the wearer, the temperature of the environment and insulation value of the garment.
For example (see chart to the left):
A person wearing the Portwest Hi-Vis Bomber Jacket (S463) performing light activity can withstand -2°C for 8hrs and -18°C for 1hr. A person performing Medium activity can withstand -18°C for 8hrs and -36°C for 1hr.
Highest level of protection - required for any persons working on or near motorways, dual-carriage ways or airports. Must incorporate a minimum of 0.80m2 of background material and 0.20m2 of retroreflective materials. (4 metres of 5cm wide reflective tape)
Required for any persons working on or near A and B class roads, also for delivery drivers. Must incorporate a minimum of 0.50m2 of background material and 0.13m2 of retro-reflective material. (2.60 metres of 5cm wide reflective tape)
Minimum level of protection required for any persons working on a private road or to be used in conjunction with a higher classed garment. Must incorporate a minimum of 0.14m2 of background material and 0.10m2 of retroreflective material. (2 metres of 5cm wide reflective tape)
Made with 300 Denier 100% polyester yarn, this is a tough fabric for tough conditions. 300D fabric has superb abrasion and tear resistance. The double polyurethane (PU) coating on the inside makes the fabric durable and waterproof, and the outer has a water and stain repellent coating which helps keep the garment clean.

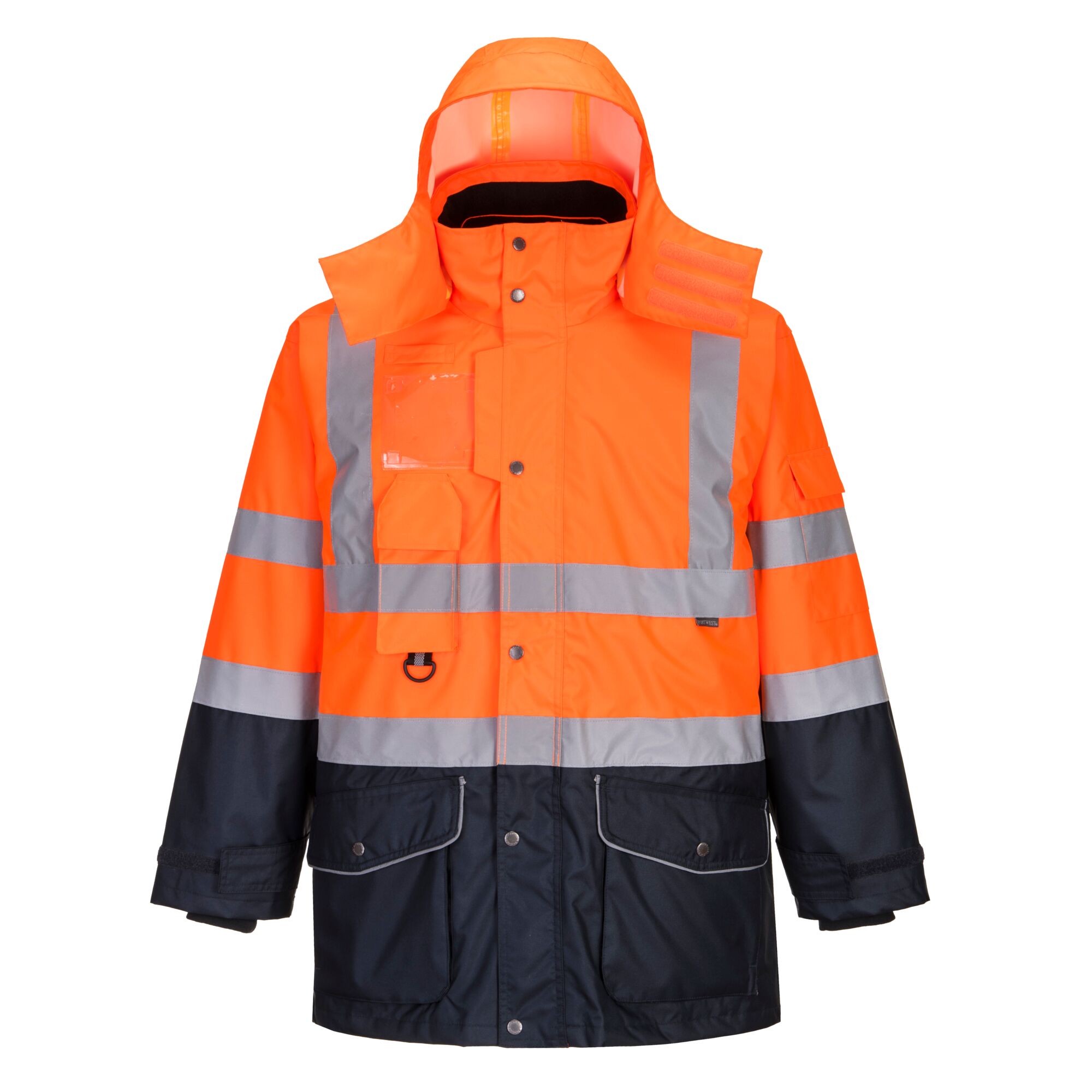

Introducing the Portwest Hi-Vis 7-in-1 Contrast Traffic Jacket - Orange/Navy. This masterfully crafted jacket stands as a paragon of innovation and versatility. With its seven wearer combinations, it promises adaptability to varying weather conditions, making it a top choice for those seeking multifunctionality. The jacket is designed not only to provide unparalleled protection from the elements but also ensures the wearer's visibility and safety, certified to the highest waterproof and breathable standards.
Key Features:
Compliance with Industry Standards:
With the Portwest Hi-Vis 7-in-1 Contrast Traffic Jacket, you are not just getting a garment, but a promise of safety, comfort, and adaptability, all rolled into one exquisite design. It's an ideal choice for those who prioritize both functionality and style.
Introducing the Portwest Hi-Vis 7-in-1 Contrast Traffic Jacket - Orange/Navy. This masterfully crafted jacket stands as a paragon of innovation and versatility. With its seven wearer combinations, it promises adaptability to varying weather conditions, making it a top choice for those seeking multifunctionality. The jacket is designed not only to provide unparalleled protection from the elements but also ensures the wearer's visibility and safety, certified to the highest waterproof and breathable standards.
Key Features:
Compliance with Industry Standards:
With the Portwest Hi-Vis 7-in-1 Contrast Traffic Jacket, you are not just getting a garment, but a promise of safety, comfort, and adaptability, all rolled into one exquisite design. It's an ideal choice for those who prioritize both functionality and style.
Introducing the Portwest Hi-Vis 7-in-1 Contrast Traffic Jacket - Orange/Navy. This masterfully crafted jacket stands as a paragon of innovation and versatility. With its seven wearer combinations, it promises adaptability to varying weather conditions, making it a top choice for those seeking multifunctionality. The jacket is designed not only to provide unparalleled protection from the elements but also ensures the wearer's visibility and safety, certified to the highest waterproof and breathable standards.
Key Features:
Compliance with Industry Standards:
With the Portwest Hi-Vis 7-in-1 Contrast Traffic Jacket, you are not just getting a garment, but a promise of safety, comfort, and adaptability, all rolled into one exquisite design. It's an ideal choice for those who prioritize both functionality and style.
Introducing the Portwest Hi-Vis 7-in-1 Contrast Traffic Jacket - Orange/Navy. This masterfully crafted jacket stands as a paragon of innovation and versatility. With its seven wearer combinations, it promises adaptability to varying weather conditions, making it a top choice for those seeking multifunctionality. The jacket is designed not only to provide unparalleled protection from the elements but also ensures the wearer's visibility and safety, certified to the highest waterproof and breathable standards.
Key Features:
Compliance with Industry Standards:
With the Portwest Hi-Vis 7-in-1 Contrast Traffic Jacket, you are not just getting a garment, but a promise of safety, comfort, and adaptability, all rolled into one exquisite design. It's an ideal choice for those who prioritize both functionality and style.
Introducing the Portwest Hi-Vis 7-in-1 Contrast Traffic Jacket - Orange/Navy. This masterfully crafted jacket stands as a paragon of innovation and versatility. With its seven wearer combinations, it promises adaptability to varying weather conditions, making it a top choice for those seeking multifunctionality. The jacket is designed not only to provide unparalleled protection from the elements but also ensures the wearer's visibility and safety, certified to the highest waterproof and breathable standards.
Key Features:
Compliance with Industry Standards:
With the Portwest Hi-Vis 7-in-1 Contrast Traffic Jacket, you are not just getting a garment, but a promise of safety, comfort, and adaptability, all rolled into one exquisite design. It's an ideal choice for those who prioritize both functionality and style.
Introducing the Portwest Hi-Vis 7-in-1 Contrast Traffic Jacket - Orange/Navy. This masterfully crafted jacket stands as a paragon of innovation and versatility. With its seven wearer combinations, it promises adaptability to varying weather conditions, making it a top choice for those seeking multifunctionality. The jacket is designed not only to provide unparalleled protection from the elements but also ensures the wearer's visibility and safety, certified to the highest waterproof and breathable standards.
Key Features:
Compliance with Industry Standards:
With the Portwest Hi-Vis 7-in-1 Contrast Traffic Jacket, you are not just getting a garment, but a promise of safety, comfort, and adaptability, all rolled into one exquisite design. It's an ideal choice for those who prioritize both functionality and style.
Introducing the Portwest Hi-Vis 7-in-1 Contrast Traffic Jacket - Orange/Navy. This masterfully crafted jacket stands as a paragon of innovation and versatility. With its seven wearer combinations, it promises adaptability to varying weather conditions, making it a top choice for those seeking multifunctionality. The jacket is designed not only to provide unparalleled protection from the elements but also ensures the wearer's visibility and safety, certified to the highest waterproof and breathable standards.
Key Features:
Compliance with Industry Standards:
With the Portwest Hi-Vis 7-in-1 Contrast Traffic Jacket, you are not just getting a garment, but a promise of safety, comfort, and adaptability, all rolled into one exquisite design. It's an ideal choice for those who prioritize both functionality and style.
Introducing the Portwest Hi-Vis 7-in-1 Contrast Traffic Jacket - Orange/Navy. This masterfully crafted jacket stands as a paragon of innovation and versatility. With its seven wearer combinations, it promises adaptability to varying weather conditions, making it a top choice for those seeking multifunctionality. The jacket is designed not only to provide unparalleled protection from the elements but also ensures the wearer's visibility and safety, certified to the highest waterproof and breathable standards.
Key Features:
Compliance with Industry Standards:
With the Portwest Hi-Vis 7-in-1 Contrast Traffic Jacket, you are not just getting a garment, but a promise of safety, comfort, and adaptability, all rolled into one exquisite design. It's an ideal choice for those who prioritize both functionality and style.
Specifications are subject to change - See Terms & Conditions for more info
Portwest has been independently rated by Ecovadis for its environmental, social, and ethical performance and achieved a silver rating, meaning they are in the top 25% of globally rated companies.
The pillars taken into consideration include the environment, labour practices and human rights, ethics, and sustainable procurement.
This product conforms with essential health and safety requirements as set out in European Directives.
40+ UPF rated fabric to block 98% of UV rays.
A mobile phone pocket is included in this garment.
This garment has print/embroidery access.
This has an interactive zip or zip-in fleece/vest feature to allow creation of a one-piece garment.
The zip can be opened from the top or bottom of the garment.
This garment is reversible.
This garment is made of a high-performance breathable fabric.
This garment has taped waterproof seams.
This symbol indicates compliance with EN ISO 20471 after 50 washes (Minimum requirement under the EN norm is 5 washes).
This garment features 13 pockets.
This garment has a radio loop for easy attachment of a radio.
This garment comes with a detachable hood.
The smallest size this product goes down to is XS.
The largest size this product goes up to is 4XL.
Extremely water resistant fabric finish, water beads away from fabric surface.
Wash at a Maximum Temperature of 40°C using a gentle wash cycle
Do not bleach this item
This item must not be tumbled dried
This item must be left to drip line dry
Do not iron this item
Do not dry clean this item
This item can only be washed a maximum of 50 times
EU Declaration of Conformity
