EN ISO 11612 is the standard for protective clothing which protects against heat and flame. Users for these garments include those who work in oil & gas, welding & allied processes, mining, petroleum and many other industries.
There are a host of specific tests conducted as part of EN ISO 11612, including tests for: Flame Spread, Tensile Strength, Tear Resistance, and Heat Resistance.
Flame Spread Test:
A flame is held against the fabric for ten seconds. After it is removed the fabric should not continue to burn. There should be no hole formation, melting or molten debris.
Tensile Strength Test:
The fabric must be able to withstand a minimum force of 300 newtons while being stretched or grabbed.
Tear Resistance Test:
The fabric must be able to withstand a minimum force of 10 newtons before it will tear.
Heat Resistance Test:
The fabric is placed in an oven at 180oC and must not ignite melt or shrink within the first 5 minutes in order to comply with the standard.
This standard investigates the fabric and garment's ability to protect against the thermal effects of an electric arc. This can be done via two test methods: 1. IEC 61482-1-1 (Open Arc Test Method) and 2. IEC 61482-1-2 (Box Test Method).
An electric arc is an intense flash of electricity which can result in numerous injuries.
Garments can be layered to achieve a better Cal rating. For example, a thermal layer may achieve an Ebt of 4.3 Cal/cm2, and an outer coverall may achieve an ATPV of 13.6 Cal/cm2. However, the combination ATPV/Ebt ratings will be greater than the sum of the two single layers, as the air gap between the two layers affords the wearer additional protection.
This test method aims to establish an ELIM (Incident Energy Limit) and an ATPV rating of a fabric and/or garment. These values, expresses as cal/cm², are the highest incident thermal energy to which the garment can be exposed without the wearer getting a second degree burn or the formation of holes in the fabric. The higher the cal rating of the garment or fabric, then the greater the protection for the wearer.
This test method aims to establish an APC1 or an APC2 rating of a fabric and/or garment (APC=Arc Protection Class). Test conditions for APC1 & APC2 try to simulate typical exposure conditions for a short circuit current of 4kA and 7kA respectively.
A single layer garment in most cases will pass APC1. For APC2, a thicker fabric or multi layer system is required.
Garments must be laundered according to the manufacturer's instructions; incorrect laundering of flame resistant garments can seriously affect their performance and fit.
The flame resistant finish is retained for the normal life cycle of the garment provided that the care instructions are adhered to.

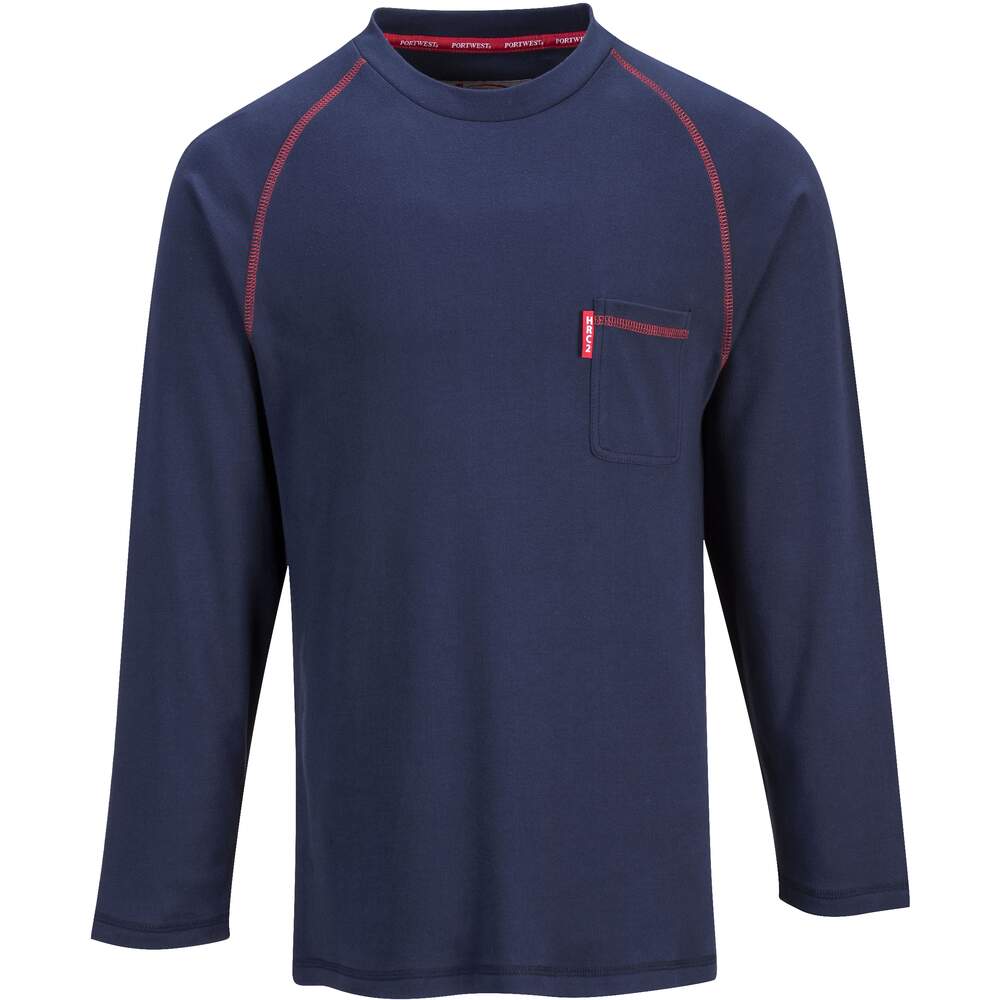

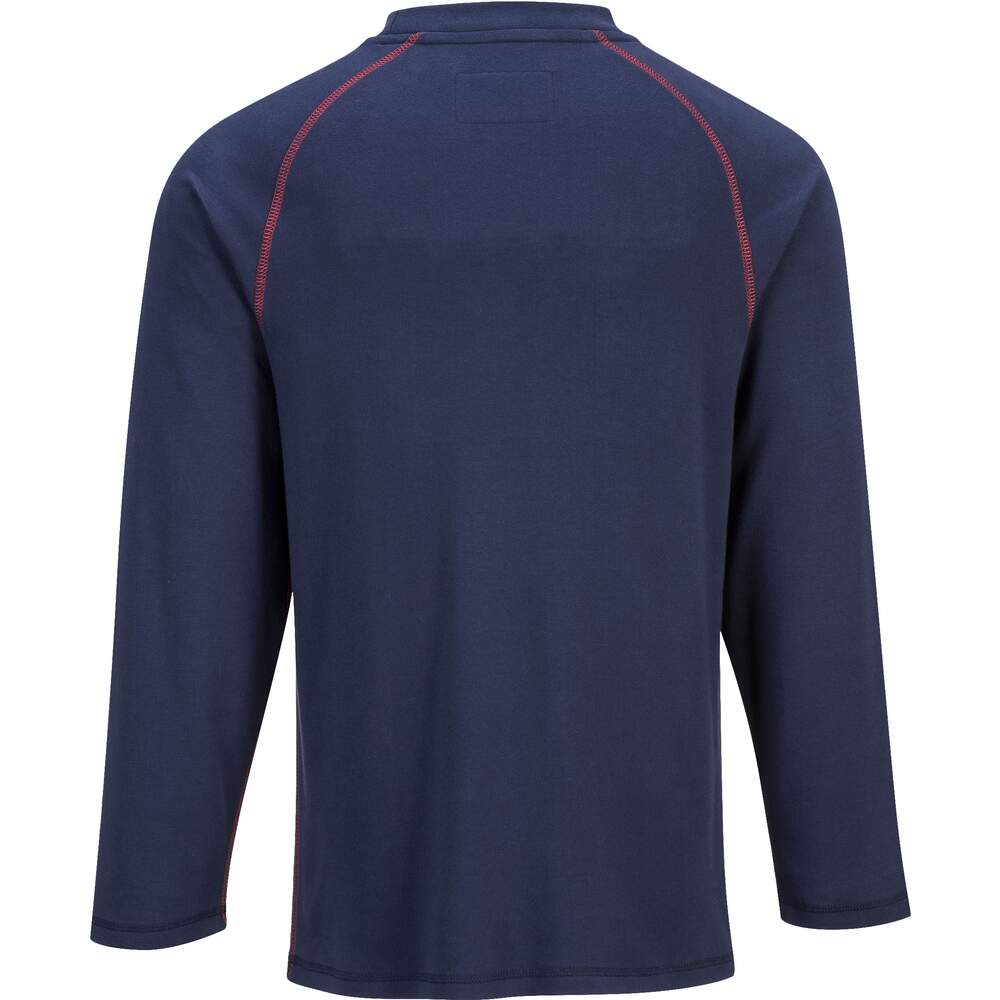

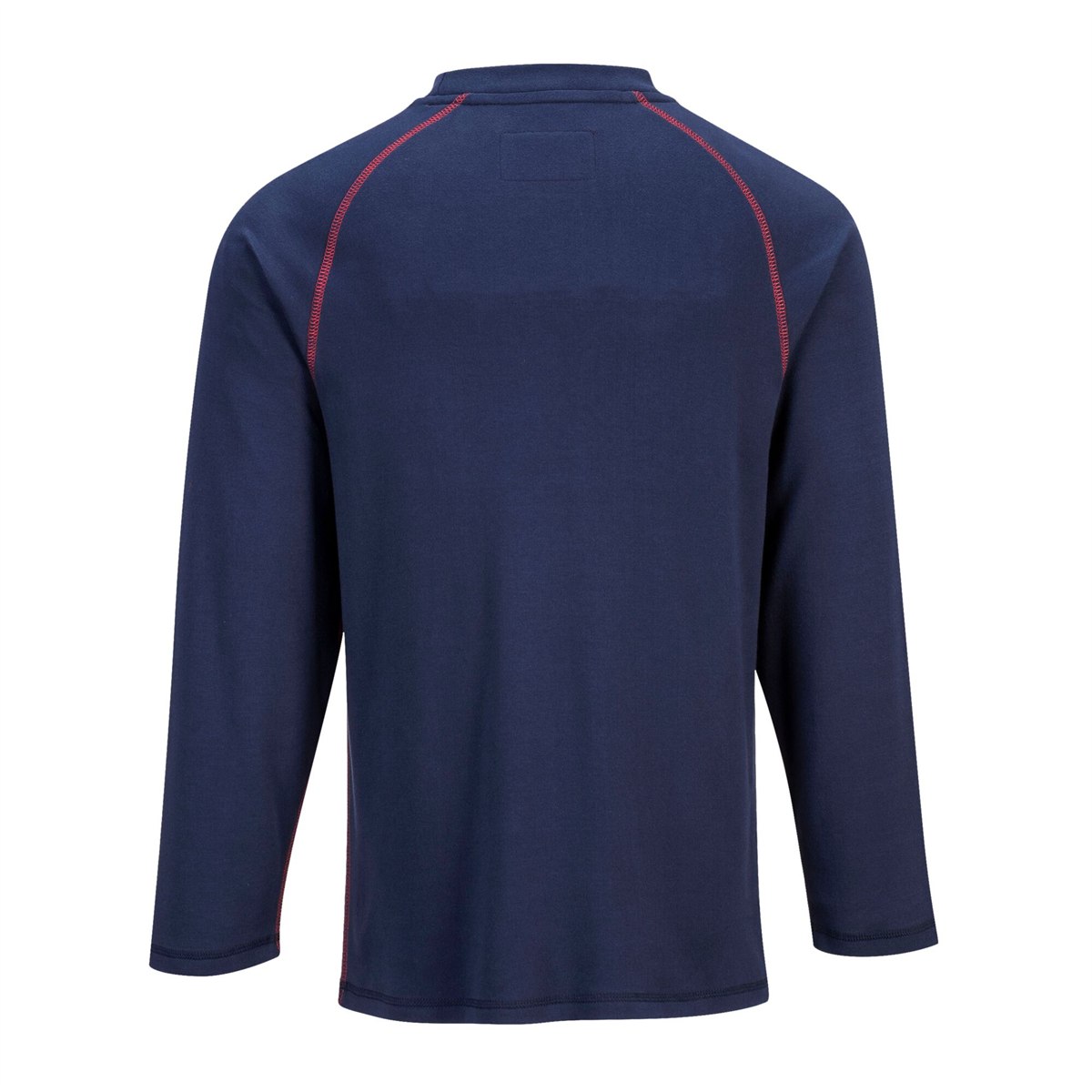

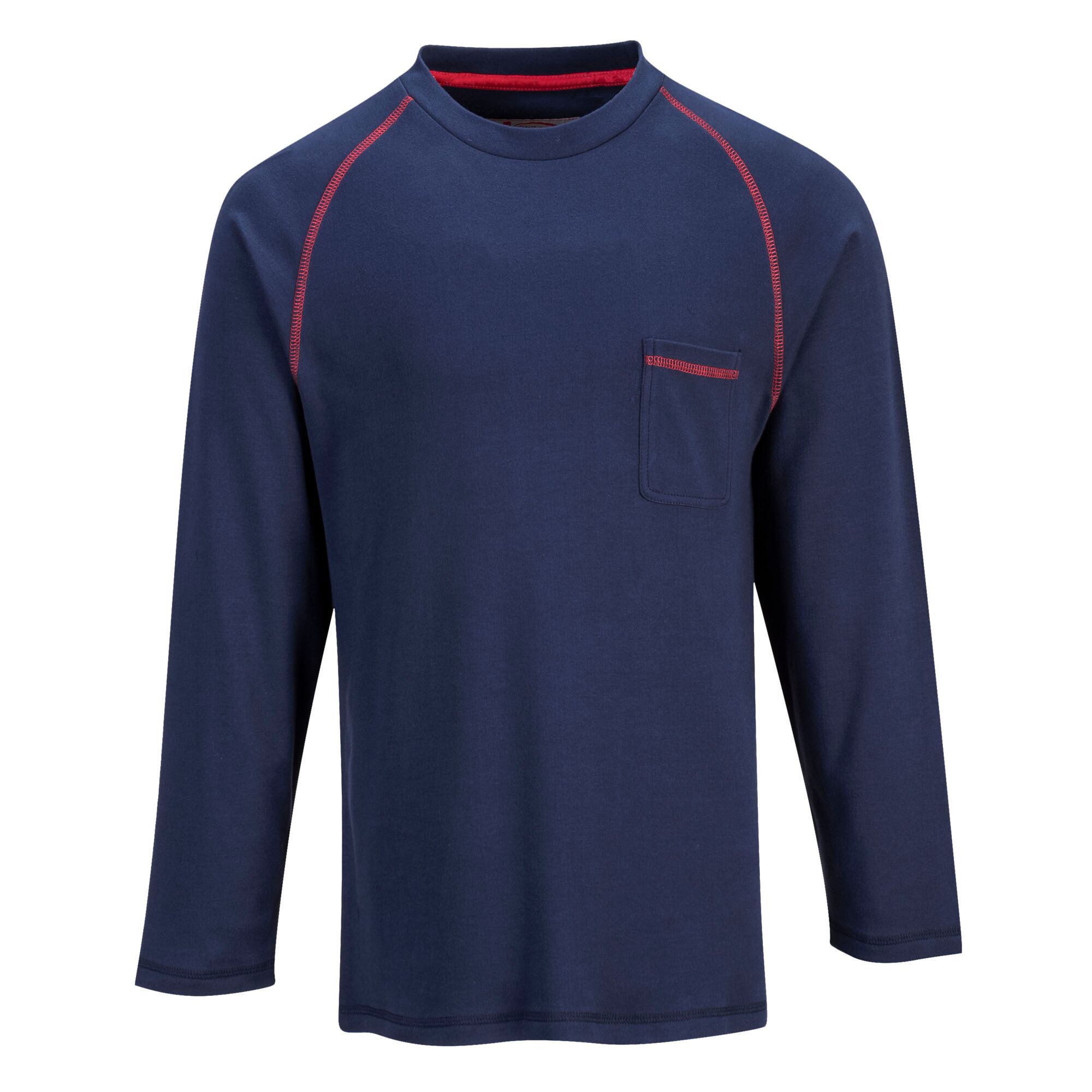

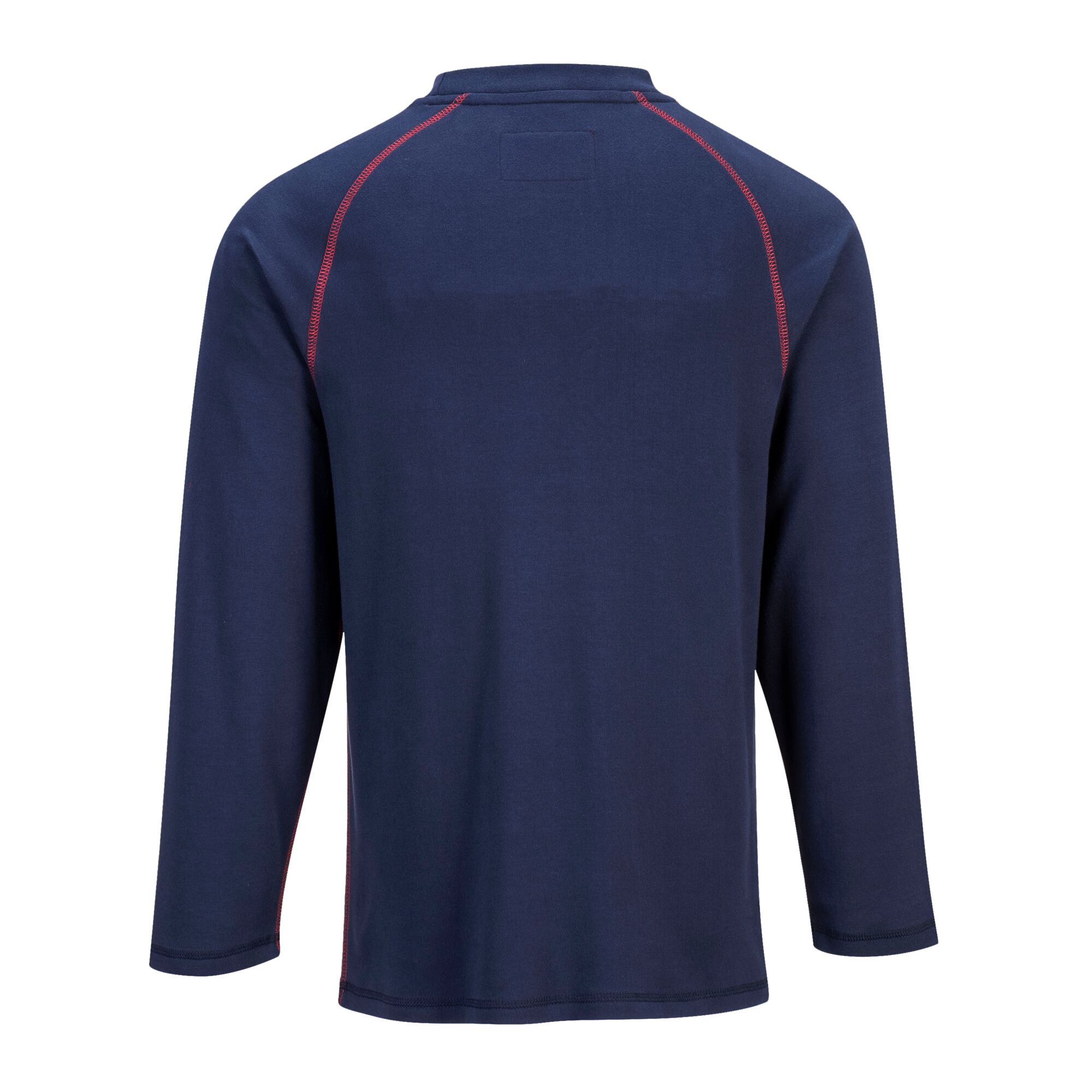

Introducing the Portwest Bizflame FR Crew Neck - Navy: A blend of style and superior protection. With its impeccable design, this crew neck is crafted to offer paramount flame-resistant comfort. Its interlock knit fabric, although lightweight, is highly insulative ensuring utmost protection against electric arcs. Suited for diverse applications, the FR01 is meticulously designed to shield against convective, radiant, and contact heat.
Key Features:
Standards:
With the Portwest Bizflame FR Crew Neck - Navy, step into any challenging environment with confidence, knowing that you’re draped in unmatched safety and elegance.
Introducing the Portwest Bizflame FR Crew Neck - Navy: A blend of style and superior protection. With its impeccable design, this crew neck is crafted to offer paramount flame-resistant comfort. Its interlock knit fabric, although lightweight, is highly insulative ensuring utmost protection against electric arcs. Suited for diverse applications, the FR01 is meticulously designed to shield against convective, radiant, and contact heat.
Key Features:
Standards:
With the Portwest Bizflame FR Crew Neck - Navy, step into any challenging environment with confidence, knowing that you’re draped in unmatched safety and elegance.
Introducing the Portwest Bizflame FR Crew Neck - Navy: A blend of style and superior protection. With its impeccable design, this crew neck is crafted to offer paramount flame-resistant comfort. Its interlock knit fabric, although lightweight, is highly insulative ensuring utmost protection against electric arcs. Suited for diverse applications, the FR01 is meticulously designed to shield against convective, radiant, and contact heat.
Key Features:
Standards:
With the Portwest Bizflame FR Crew Neck - Navy, step into any challenging environment with confidence, knowing that you’re draped in unmatched safety and elegance.
Introducing the Portwest Bizflame FR Crew Neck - Navy: A blend of style and superior protection. With its impeccable design, this crew neck is crafted to offer paramount flame-resistant comfort. Its interlock knit fabric, although lightweight, is highly insulative ensuring utmost protection against electric arcs. Suited for diverse applications, the FR01 is meticulously designed to shield against convective, radiant, and contact heat.
Key Features:
Standards:
With the Portwest Bizflame FR Crew Neck - Navy, step into any challenging environment with confidence, knowing that you’re draped in unmatched safety and elegance.
Introducing the Portwest Bizflame FR Crew Neck - Navy: A blend of style and superior protection. With its impeccable design, this crew neck is crafted to offer paramount flame-resistant comfort. Its interlock knit fabric, although lightweight, is highly insulative ensuring utmost protection against electric arcs. Suited for diverse applications, the FR01 is meticulously designed to shield against convective, radiant, and contact heat.
Key Features:
Standards:
With the Portwest Bizflame FR Crew Neck - Navy, step into any challenging environment with confidence, knowing that you’re draped in unmatched safety and elegance.
Introducing the Portwest Bizflame FR Crew Neck - Navy: A blend of style and superior protection. With its impeccable design, this crew neck is crafted to offer paramount flame-resistant comfort. Its interlock knit fabric, although lightweight, is highly insulative ensuring utmost protection against electric arcs. Suited for diverse applications, the FR01 is meticulously designed to shield against convective, radiant, and contact heat.
Key Features:
Standards:
With the Portwest Bizflame FR Crew Neck - Navy, step into any challenging environment with confidence, knowing that you’re draped in unmatched safety and elegance.
Introducing the Portwest Bizflame FR Crew Neck - Navy: A blend of style and superior protection. With its impeccable design, this crew neck is crafted to offer paramount flame-resistant comfort. Its interlock knit fabric, although lightweight, is highly insulative ensuring utmost protection against electric arcs. Suited for diverse applications, the FR01 is meticulously designed to shield against convective, radiant, and contact heat.
Key Features:
Standards:
With the Portwest Bizflame FR Crew Neck - Navy, step into any challenging environment with confidence, knowing that you’re draped in unmatched safety and elegance.
Introducing the Portwest Bizflame FR Crew Neck - Navy: A blend of style and superior protection. With its impeccable design, this crew neck is crafted to offer paramount flame-resistant comfort. Its interlock knit fabric, although lightweight, is highly insulative ensuring utmost protection against electric arcs. Suited for diverse applications, the FR01 is meticulously designed to shield against convective, radiant, and contact heat.
Key Features:
Standards:
With the Portwest Bizflame FR Crew Neck - Navy, step into any challenging environment with confidence, knowing that you’re draped in unmatched safety and elegance.
Introducing the Portwest Bizflame FR Crew Neck - Navy: A blend of style and superior protection. With its impeccable design, this crew neck is crafted to offer paramount flame-resistant comfort. Its interlock knit fabric, although lightweight, is highly insulative ensuring utmost protection against electric arcs. Suited for diverse applications, the FR01 is meticulously designed to shield against convective, radiant, and contact heat.
Key Features:
Standards:
With the Portwest Bizflame FR Crew Neck - Navy, step into any challenging environment with confidence, knowing that you’re draped in unmatched safety and elegance.
Specifications are subject to change - See Terms & Conditions for more info
Portwest has been independently rated by Ecovadis for its environmental, social, and ethical performance and achieved a gold rating, meaning they are in the top 5% of globally rated companies.
The pillars taken into consideration include the environment, labour practices and human rights, ethics, and sustainable procurement.
This product is CE marked as a Category 3 item for complex design.
