A Retroreflectometer is used to check the performance of retroreflective tape. Every roll of tape is tested to ensure it meets and exceeds the standard requirements. The retroflectometer measures the coefficient of two rotating angles. EN ISO 20471 states the reading should not be below 330 (cd/lx.m2) however at Portwest they insist on a reading of 400 (cd/lx.m2) plus.
A spectrophotometer is used to check the chromaticity – “colour intensity” – of fabric. They use this to ensure every roll of fabric meets the requirements of EN ISO 20471 and RIS-3279-TOM.
RIS imposes a higher concentration for high visibility orange fabric for railway workers. This increases the conspicuous nature of the fabric and ensures that the rail worker is more visible.
Reflective tape must be at least 50mm wide. Bands of reflective tape must be positioned at least 50mm apart.
Reflective tape must be positioned 50mm or more from the end of sleeve or leg.
Reflective tape must encircle torso and/or limbs to be included in the calculation of the necessary square area of reflective tape. A gap (for fastening system or seam) in the band of reflective tape must be 50mm or less. The total amount of such gaps in every band must not exceed 100mm around the torso and 50mm around the sleeves and legs.
Highest level of protection - required for any persons working on or near motorways, dual-carriage ways or airports. Must incorporate a minimum of 0.80m2 of background material and 0.20m2 of retroreflective materials. (4 metres of 5cm wide reflective tape)
Required for any persons working on or near A and B class roads, also for delivery drivers. Must incorporate a minimum of 0.50m2 of background material and 0.13m2 of retro-reflective material. (2.60 metres of 5cm wide reflective tape)
Minimum level of protection required for any persons working on a private road or to be used in conjunction with a higher classed garment. Must incorporate a minimum of 0.14m2 of background material and 0.10m2 of retroreflective material. (2 metres of 5cm wide reflective tape)

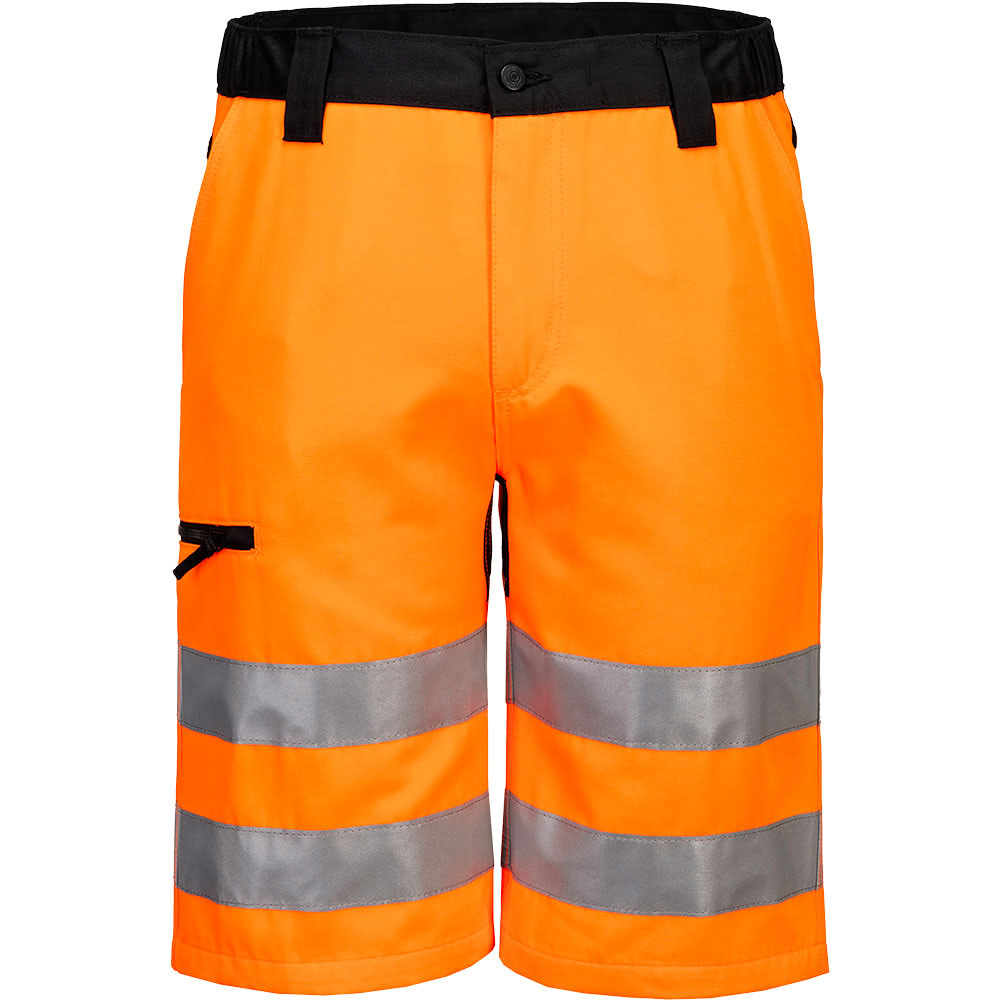

A hi-vis short with recycled properties, stretch paneling, and pockets offers visibility, comfort, and practicality. Made from eco-friendly materials, it provides flexibility and ease of movement. Ideal for warmer conditions, it combines sustainability with performance for active work environments.
A hi-vis short with recycled properties, stretch paneling, and pockets offers visibility, comfort, and practicality. Made from eco-friendly materials, it provides flexibility and ease of movement. Ideal for warmer conditions, it combines sustainability with performance for active work environments.
A hi-vis short with recycled properties, stretch paneling, and pockets offers visibility, comfort, and practicality. Made from eco-friendly materials, it provides flexibility and ease of movement. Ideal for warmer conditions, it combines sustainability with performance for active work environments.
A hi-vis short with recycled properties, stretch paneling, and pockets offers visibility, comfort, and practicality. Made from eco-friendly materials, it provides flexibility and ease of movement. Ideal for warmer conditions, it combines sustainability with performance for active work environments.
A hi-vis short with recycled properties, stretch paneling, and pockets offers visibility, comfort, and practicality. Made from eco-friendly materials, it provides flexibility and ease of movement. Ideal for warmer conditions, it combines sustainability with performance for active work environments.
A hi-vis short with recycled properties, stretch paneling, and pockets offers visibility, comfort, and practicality. Made from eco-friendly materials, it provides flexibility and ease of movement. Ideal for warmer conditions, it combines sustainability with performance for active work environments.
A hi-vis short with recycled properties, stretch paneling, and pockets offers visibility, comfort, and practicality. Made from eco-friendly materials, it provides flexibility and ease of movement. Ideal for warmer conditions, it combines sustainability with performance for active work environments.
A hi-vis short with recycled properties, stretch paneling, and pockets offers visibility, comfort, and practicality. Made from eco-friendly materials, it provides flexibility and ease of movement. Ideal for warmer conditions, it combines sustainability with performance for active work environments.
A hi-vis short with recycled properties, stretch paneling, and pockets offers visibility, comfort, and practicality. Made from eco-friendly materials, it provides flexibility and ease of movement. Ideal for warmer conditions, it combines sustainability with performance for active work environments.
A hi-vis short with recycled properties, stretch paneling, and pockets offers visibility, comfort, and practicality. Made from eco-friendly materials, it provides flexibility and ease of movement. Ideal for warmer conditions, it combines sustainability with performance for active work environments.
A hi-vis short with recycled properties, stretch paneling, and pockets offers visibility, comfort, and practicality. Made from eco-friendly materials, it provides flexibility and ease of movement. Ideal for warmer conditions, it combines sustainability with performance for active work environments.
A hi-vis short with recycled properties, stretch paneling, and pockets offers visibility, comfort, and practicality. Made from eco-friendly materials, it provides flexibility and ease of movement. Ideal for warmer conditions, it combines sustainability with performance for active work environments.
A hi-vis short with recycled properties, stretch paneling, and pockets offers visibility, comfort, and practicality. Made from eco-friendly materials, it provides flexibility and ease of movement. Ideal for warmer conditions, it combines sustainability with performance for active work environments.
A hi-vis short with recycled properties, stretch paneling, and pockets offers visibility, comfort, and practicality. Made from eco-friendly materials, it provides flexibility and ease of movement. Ideal for warmer conditions, it combines sustainability with performance for active work environments.
Specifications are subject to change - See Terms & Conditions for more info
Portwest has been independently rated by Ecovadis for its environmental, social, and ethical performance and achieved a silver rating, meaning they are in the top 25% of globally rated companies.
The pillars taken into consideration include the environment, labour practices and human rights, ethics, and sustainable procurement.
This product conforms with essential health and safety requirements as set out in European Directives.
This garment has stretch panelling in key movement areas for greater flexibility.
This garment features 4 pockets.
This symbol indicates compliance with EN ISO 20471 after 50 washes (Minimum requirement under the EN norm is 5 washes).
This is an eco-conscious product made using certified recycled or sustainable fabrics or materials.
Data Sheet
