In order to comply with EN ISO 11611 all external pockets must be flapped, except for side pockets below the waist which do not extend more than ten degrees forward of the seam.
A single rule pocket with an opening not greater than 75mm is permitted behind the side seam on one or both legs.
To meet EN ISO 11611 tensile strength must be at least 400N and tear strength must be at least 15N for class 1 and 20N for class 2.
For example:
Portwest's winning FR50 style has a tensile strength value of at least 500N and tear strength of at least 25N after 50 washes.
This international standard specifies minimum basic safety requirements and test methods for protective clothing for use in welding and allied processes (excluding hand protection). There are two classes with specific performance requirements.
Class 1 is protection against less hazardous welding techniques and situations, causing lower levels of spatter and radiant heat.
Class 2 is protection against more hazardous welding techniques and situations, causing higher levels of spatter and radiant heat.
The EN ISO 11611: standard has the following parameters:
EN ISO 11612 is the standard for protective clothing which protects against heat and flame. Users for these garments include those who work in oil & gas, welding & allied processes, mining, petroleum and many other industries.
There are a host of specific tests conducted as part of EN ISO 11612, including tests for: Flame Spread, Tensile Strength, Tear Resistance, and Heat Resistance.
Flame Spread Test:
A flame is held against the fabric for ten seconds. After it is removed the fabric should not continue to burn. There should be no hole formation, melting or molten debris.
Tensile Strength Test:
The fabric must be able to withstand a minimum force of 300 newtons while being stretched or grabbed.
Tear Resistance Test:
The fabric must be able to withstand a minimum force of 10 newtons before it will tear.
Heat Resistance Test:
The fabric is placed in an oven at 180oC and must not ignite melt or shrink within the first 5 minutes in order to comply with the standard.
This standard investigates the fabric and garment's ability to protect against the thermal effects of an electric arc. This can be done via two test methods: 1. IEC 61482-1-1 (Open Arc Test Method) and 2. IEC 61482-1-2 (Box Test Method).
An electric arc is an intense flash of electricity which can result in numerous injuries.
Garments can be layered to achieve a better Cal rating. For example, a thermal layer may achieve an Ebt of 4.3 Cal/cm2, and an outer coverall may achieve an ATPV of 13.6 Cal/cm2. However, the combination ATPV/Ebt ratings will be greater than the sum of the two single layers, as the air gap between the two layers affords the wearer additional protection.
This test method aims to establish an ELIM (Incident Energy Limit) and an ATPV rating of a fabric and/or garment. These values, expresses as cal/cm², are the highest incident thermal energy to which the garment can be exposed without the wearer getting a second degree burn or the formation of holes in the fabric. The higher the cal rating of the garment or fabric, then the greater the protection for the wearer.
This test method aims to establish an APC1 or an APC2 rating of a fabric and/or garment (APC=Arc Protection Class). Test conditions for APC1 & APC2 try to simulate typical exposure conditions for a short circuit current of 4kA and 7kA respectively.
A single layer garment in most cases will pass APC1. For APC2, a thicker fabric or multi layer system is required.

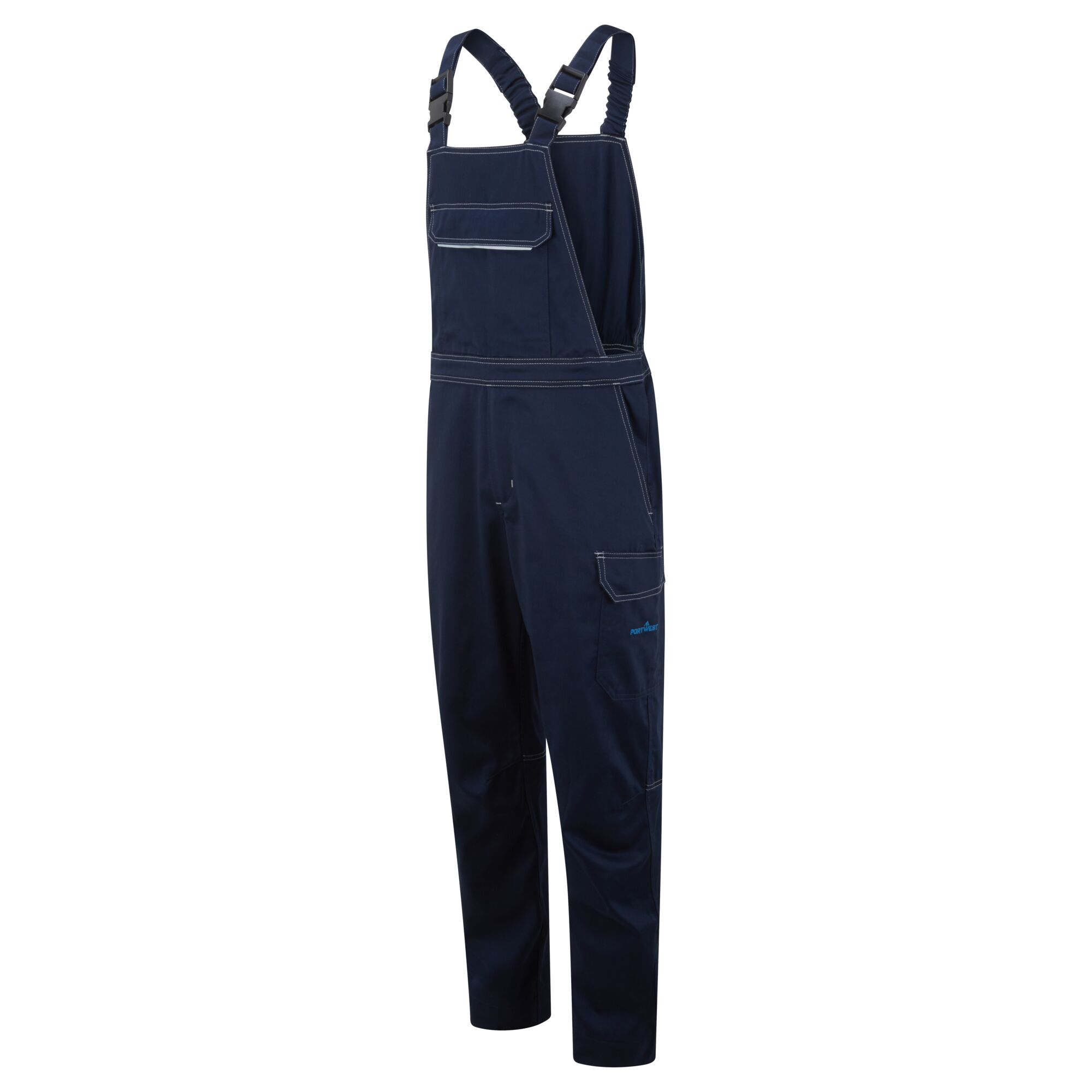

Offering complete lower body and chest protection, the Bizweld FR Bib and Brace has been designed with the safety and protection of the wearer in mind. It has been constructed with a large chest flap pocket in the front for carrying tools or personal belongings and also boasts a side pocket, a back hip pocket with flap, and a rule pocket. Reinforced seams ensure increased durability and a longer lifespan. Both the braces and the waist are elastically for optimal wearing comfort.
Offering complete lower body and chest protection, the Bizweld FR Bib and Brace has been designed with the safety and protection of the wearer in mind. It has been constructed with a large chest flap pocket in the front for carrying tools or personal belongings and also boasts a side pocket, a back hip pocket with flap, and a rule pocket. Reinforced seams ensure increased durability and a longer lifespan. Both the braces and the waist are elastically for optimal wearing comfort.
Offering complete lower body and chest protection, the Bizweld FR Bib and Brace has been designed with the safety and protection of the wearer in mind. It has been constructed with a large chest flap pocket in the front for carrying tools or personal belongings and also boasts a side pocket, a back hip pocket with flap, and a rule pocket. Reinforced seams ensure increased durability and a longer lifespan. Both the braces and the waist are elastically for optimal wearing comfort.
Offering complete lower body and chest protection, the Bizweld FR Bib and Brace has been designed with the safety and protection of the wearer in mind. It has been constructed with a large chest flap pocket in the front for carrying tools or personal belongings and also boasts a side pocket, a back hip pocket with flap, and a rule pocket. Reinforced seams ensure increased durability and a longer lifespan. Both the braces and the waist are elastically for optimal wearing comfort.
Offering complete lower body and chest protection, the Bizweld FR Bib and Brace has been designed with the safety and protection of the wearer in mind. It has been constructed with a large chest flap pocket in the front for carrying tools or personal belongings and also boasts a side pocket, a back hip pocket with flap, and a rule pocket. Reinforced seams ensure increased durability and a longer lifespan. Both the braces and the waist are elastically for optimal wearing comfort.
Offering complete lower body and chest protection, the Bizweld FR Bib and Brace has been designed with the safety and protection of the wearer in mind. It has been constructed with a large chest flap pocket in the front for carrying tools or personal belongings and also boasts a side pocket, a back hip pocket with flap, and a rule pocket. Reinforced seams ensure increased durability and a longer lifespan. Both the braces and the waist are elastically for optimal wearing comfort.
Offering complete lower body and chest protection, the Bizweld FR Bib and Brace has been designed with the safety and protection of the wearer in mind. It has been constructed with a large chest flap pocket in the front for carrying tools or personal belongings and also boasts a side pocket, a back hip pocket with flap, and a rule pocket. Reinforced seams ensure increased durability and a longer lifespan. Both the braces and the waist are elastically for optimal wearing comfort.
Offering complete lower body and chest protection, the Bizweld FR Bib and Brace has been designed with the safety and protection of the wearer in mind. It has been constructed with a large chest flap pocket in the front for carrying tools or personal belongings and also boasts a side pocket, a back hip pocket with flap, and a rule pocket. Reinforced seams ensure increased durability and a longer lifespan. Both the braces and the waist are elastically for optimal wearing comfort.
Offering complete lower body and chest protection, the Bizweld FR Bib and Brace has been designed with the safety and protection of the wearer in mind. It has been constructed with a large chest flap pocket in the front for carrying tools or personal belongings and also boasts a side pocket, a back hip pocket with flap, and a rule pocket. Reinforced seams ensure increased durability and a longer lifespan. Both the braces and the waist are elastically for optimal wearing comfort.
Specifications are subject to change - See Terms & Conditions for more info
Portwest has been independently rated by Ecovadis for its environmental, social, and ethical performance and achieved a gold rating, meaning they are in the top 5% of globally rated companies.
The pillars taken into consideration include the environment, labour practices and human rights, ethics, and sustainable procurement.
This product conforms with essential health and safety requirements as set out in European Directives.
40+ UPF rated fabric to block 98% of UV rays.
This garment features 6 pockets.
An optional test for safety helmets, it indicates the resistance to molten metals and hot solids projection.
This product is a new addition to the range of Portwest products.
Data Sheet
