A Retroreflectometer is used to check the performance of retroreflective tape. Every roll of tape is tested to ensure it meets and exceeds the standard requirements. The retroflectometer measures the coefficient of two rotating angles. EN ISO 20471 states the reading should not be below 330 (cd/lx.m2) however at Portwest they insist on a reading of 400 (cd/lx.m2) plus.
A spectrophotometer is used to check the chromaticity – “colour intensity” – of fabric. They use this to ensure every roll of fabric meets the requirements of EN ISO 20471 and RIS-3279-TOM.
RIS imposes a higher concentration for high visibility orange fabric for railway workers. This increases the conspicuous nature of the fabric and ensures that the rail worker is more visible.
Reflective tape must be at least 50mm wide. Bands of reflective tape must be positioned at least 50mm apart.
Reflective tape must be positioned 50mm or more from the end of sleeve or leg.
Reflective tape must encircle torso and/or limbs to be included in the calculation of the necessary square area of reflective tape. A gap (for fastening system or seam) in the band of reflective tape must be 50mm or less. The total amount of such gaps in every band must not exceed 100mm around the torso and 50mm around the sleeves and legs.
EN343 is the European standard that applies to garments worn in adverse weather conditions. This standard specifies requirements and test methods applicable to the materials and seams of protective clothing against the influence of precipitation (e.g. rain, snowflakes), fog, and ground humidity.
The pictogram to the left indicates that protection against rain is offered.
The standard provides for two performance parameters of which there are 4 levels with Class 4 offering the highest level of protection.
Highest level of protection - required for any persons working on or near motorways, dual-carriage ways or airports. Must incorporate a minimum of 0.80m2 of background material and 0.20m2 of retroreflective materials. (4 metres of 5cm wide reflective tape)
Required for any persons working on or near A and B class roads, also for delivery drivers. Must incorporate a minimum of 0.50m2 of background material and 0.13m2 of retro-reflective material. (2.60 metres of 5cm wide reflective tape)
Minimum level of protection required for any persons working on a private road or to be used in conjunction with a higher classed garment. Must incorporate a minimum of 0.14m2 of background material and 0.10m2 of retroreflective material. (2 metres of 5cm wide reflective tape)
For chemical protective clothing offering limited protective performance against liquid chemicals (Type 6 and Type PB [6] equipment). This standard specifies the minimum requirements for limited use and re-useable limited performance chemical protective clothing.
Limited performance chemical protective clothing is intended for use in cases of a potential exposure to a light spray, liquid aerosols or low pressure, low volume splashes, against which a complete liquid permeation barrier (at a molecular level) is not required.
Type 6 Chemical Protective suits must cover and protect at least the trunk and the limbs.
Example: One piece coveralls or two piece suits (with or without hood), boot-socks, or boot covers.
Type PB [6] Partial body protection covers and protects only specific parts of the body.
Example: coats, aprons, sleeves.
This European standard is part of a series of standards for test methods and requirements for electrostatic properties of protective clothing.
The standard specifies material and design requirements for garments used as part of a total earthed system, to avoid incendiary discharges.
The requirements may not be sufficient in oxygen enriched flammable atmospheres.
This European Standard is not applicable for specifying protection against main voltages.
Test method for measurement of surface resistivity. Surface resistance measures the conductivity between two points on the surface of a fabric. The lower the resistance the higher the conductivity, resulting in charge going to earth.
Test method for measurement of the electrical resistance through a material (vertical resistance). This is the level of conductivity when measured through the depth of a fabric.
Test methods for measurement of charge decay. Charge decay measures how long it takes for an electric current to dissipate. The quicker it dissipates the higher the anti-static properties of the garment.
Please note the EN 1149-4 Garment Test is under development.
EN 1149-5 specifies the performance and design requirements to avoid static discharge for all electrostatic dissipative protective clothing as part of an entire earthed system, shoes, clothing & floor. The material meets the requirements.
![EN 13034 - What Is The Difference Between Type 6 And Type PB [6] Chemical Protection?](https://theppeonlineshop.co.uk/images/show_case/show_case_portwest_28_en_13034_88-1.jpg)
![EN 13034 - What Is The Difference Between Type 6 And Type PB [6] Chemical Protection?](https://theppeonlineshop.co.uk/images/show_case/show_case_portwest_28_en_13034_88-2.jpg)
EN 13034 specifies the performance requirements for disposable and re-usable limited performance chemical protective clothing (Type 6 and (Type PB [6]) garments. Limited performance chemical protective clothing (disposable and re-usable) is intended for use in cases of a potential exposure to a light spray, liquid aerosols, low volume splashes and in circumstances where a complete barrier to chemical exposure is not required.
The standard covers both chemical protective suits (Type 6) and partial body protection (Type PB [6])
Chemical Protective Suits (Type 6) cover and protect at least the trunk and the limbs, e.g. one piece coveralls or two piece suits with or without hood, boot-socks, or boot covers.
Partial Body Protection of similar limited performance Type PB [6] covers and protects only specific parts of the body, e.g. coats, aprons, sleeves, etc.
![EN 13034 - What Is The Difference Between Type 6 And Type PB [6] Chemical Protection Testing?](https://theppeonlineshop.co.uk/images/show_case/show_case_portwest_28_en_13034_89-1.jpg)
![EN 13034 - What Is The Difference Between Type 6 And Type PB [6] Chemical Protection Testing?](https://theppeonlineshop.co.uk/images/show_case/show_case_portwest_28_en_13034_89-2.jpg)
![EN 13034 - What Is The Difference Between Type 6 And Type PB [6] Chemical Protection Testing?](https://theppeonlineshop.co.uk/images/show_case/show_case_portwest_28_en_13034_89-3.jpg)
In order to ensure that a chemical protective suit meets Type 6 protection, it is tested using a mist or fine spray of water. The water is dosed with a mild detergent to produce a specified surface tension and injected with a dye to aid the assessment of leakage. The test subject wears an absorbent suit underneath the one to be tested, which absorbs any leaks and is stained by the dye. Success or failure is determined by measuring the total area of any stains on three suits and comparing this with the requirement. Leaks will typically occur at closures and interface areas, but the liquid can also seep through the material itself.
Type PB [6] testing is conducted in a similar way to the Type 6 suit test but only on partial body garments such as sleeves, aprons, coats, etc.
This international standard specifies the performance requirements for the limited flame spread properties of materials and protective clothing intended to protect workers against occasional brief contact with small flames.
There are 3 indices for limited flame spread protection under the standard. Depending on how the fabric performs during the test determines the index or level of protection.
EN ISO 14116 Testing Equipment
A specialist test rig is used for testing flame standards on materials under laboratory conditions. A small flame is applied to a fabric sample for 10 seconds and then removed. The condition of the fabric is then examined.
Index 1 - The lowest level of protection
The flame does not spread, there are no flaming debris, no afterglow but a hole may be formed
Index 2 - A higher level of protection
The flame does not spread, there are no flaming debris, no afterglow and there will be no hole formation.
Index 3 - The highest level of protection
At this level the flame does not spread, there are no flaming debris, no afterglow, no hole formation and it also specifies that the afterflame time for each individual sample garment is less than 2 seconds.

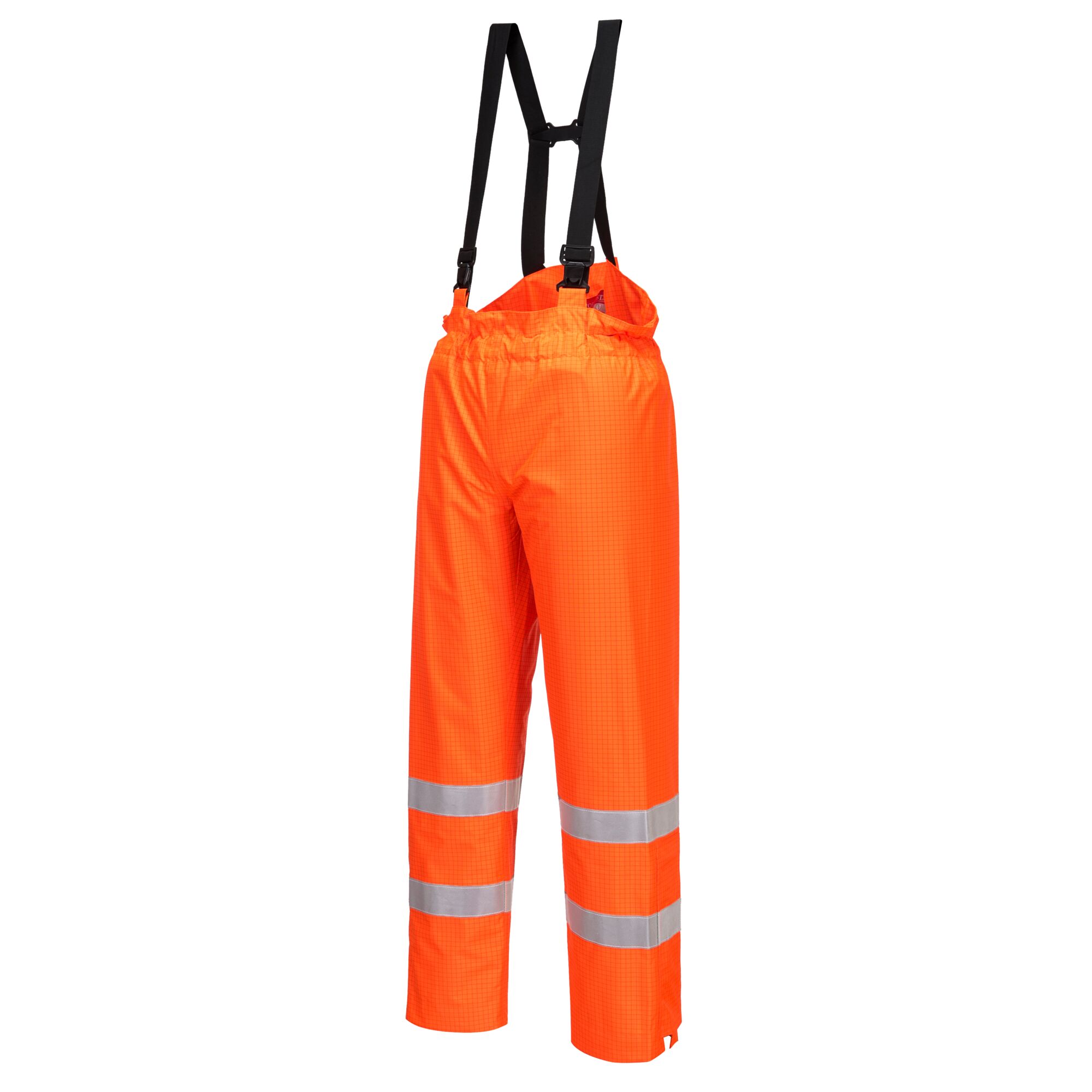

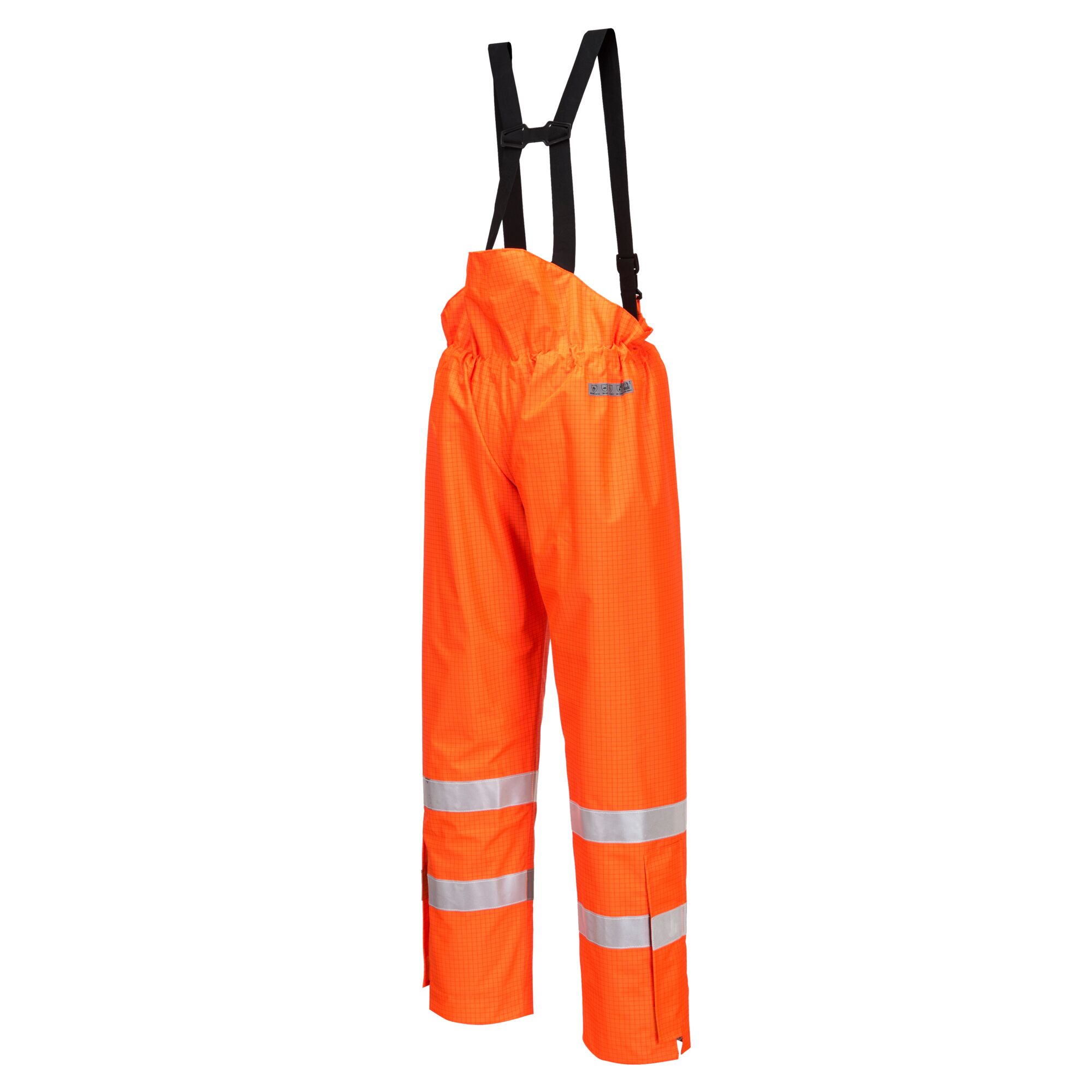

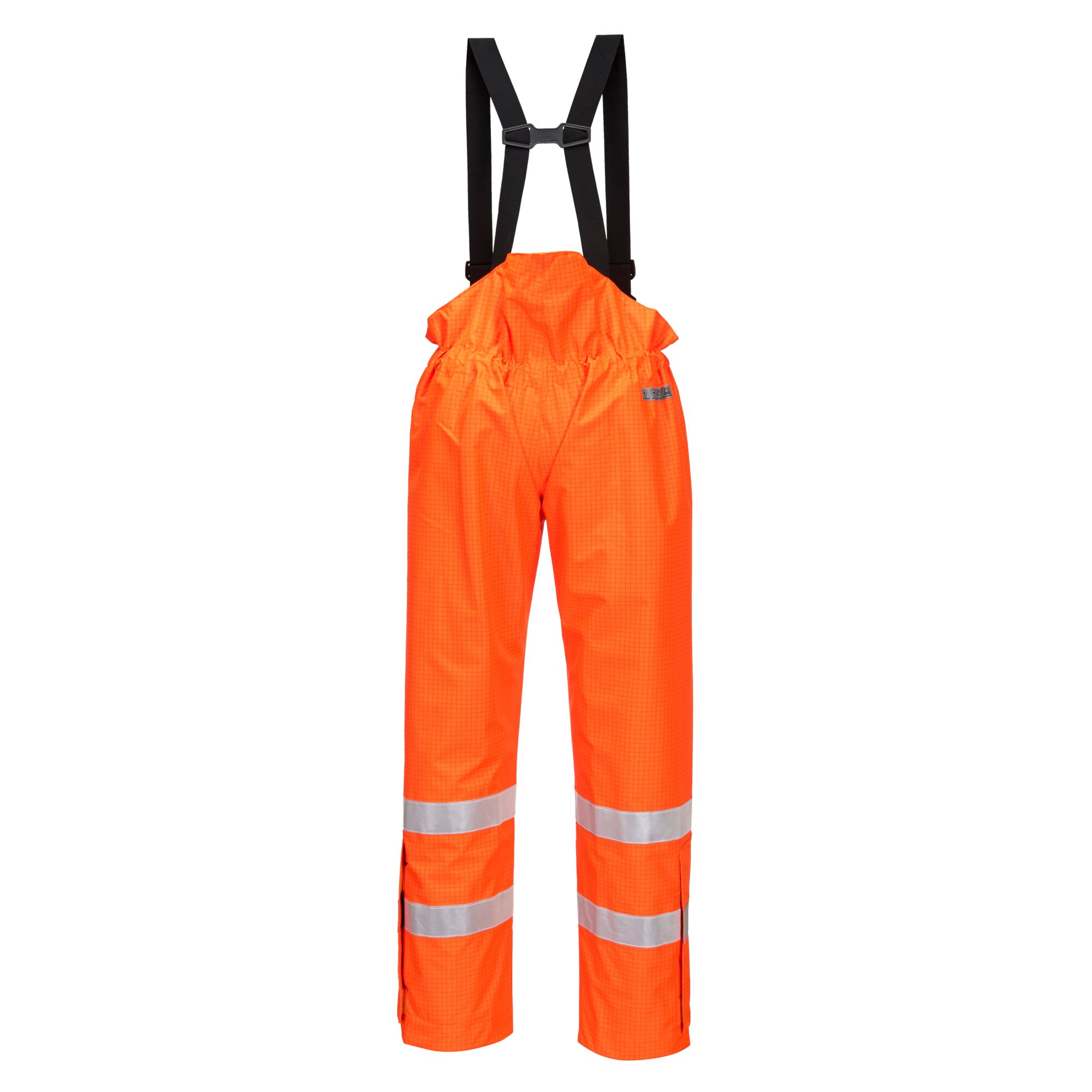

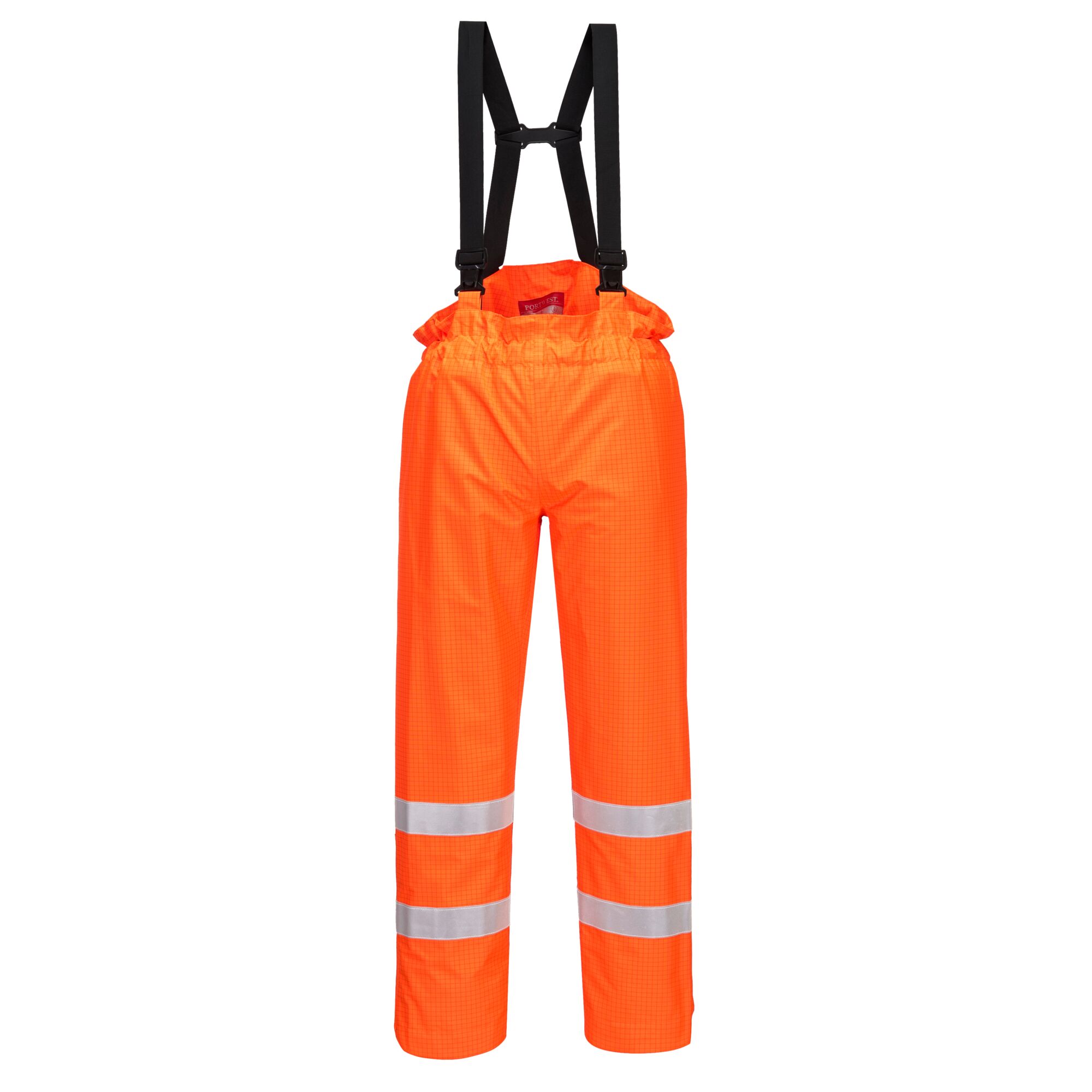

Equip yourself with the ultimate protective gear - the Portwest Bizflame Rain Unlined Hi-Vis Antistatic FR Trouser in Orange. Tailored to cater to the demands of a challenging work environment, this garment marries function with comfort to provide a trouser that stands tall in the face of hazards.
Key Features:
Standards Compliance:
This garment strictly adheres to several safety and quality standards, assuring you of its reliability and efficiency in safeguarding you against multiple hazards. These include:
Choose the Portwest Bizflame Rain Unlined Hi-Vis Antistatic FR Trouser in Orange for a safety garment that doesn’t compromise on comfort or functionality, ensuring that you remain protected in a variety of work conditions.
Equip yourself with the ultimate protective gear - the Portwest Bizflame Rain Unlined Hi-Vis Antistatic FR Trouser in Orange. Tailored to cater to the demands of a challenging work environment, this garment marries function with comfort to provide a trouser that stands tall in the face of hazards.
Key Features:
Standards Compliance:
This garment strictly adheres to several safety and quality standards, assuring you of its reliability and efficiency in safeguarding you against multiple hazards. These include:
Choose the Portwest Bizflame Rain Unlined Hi-Vis Antistatic FR Trouser in Orange for a safety garment that doesn’t compromise on comfort or functionality, ensuring that you remain protected in a variety of work conditions.
Equip yourself with the ultimate protective gear - the Portwest Bizflame Rain Unlined Hi-Vis Antistatic FR Trouser in Orange. Tailored to cater to the demands of a challenging work environment, this garment marries function with comfort to provide a trouser that stands tall in the face of hazards.
Key Features:
Standards Compliance:
This garment strictly adheres to several safety and quality standards, assuring you of its reliability and efficiency in safeguarding you against multiple hazards. These include:
Choose the Portwest Bizflame Rain Unlined Hi-Vis Antistatic FR Trouser in Orange for a safety garment that doesn’t compromise on comfort or functionality, ensuring that you remain protected in a variety of work conditions.
Equip yourself with the ultimate protective gear - the Portwest Bizflame Rain Unlined Hi-Vis Antistatic FR Trouser in Orange. Tailored to cater to the demands of a challenging work environment, this garment marries function with comfort to provide a trouser that stands tall in the face of hazards.
Key Features:
Standards Compliance:
This garment strictly adheres to several safety and quality standards, assuring you of its reliability and efficiency in safeguarding you against multiple hazards. These include:
Choose the Portwest Bizflame Rain Unlined Hi-Vis Antistatic FR Trouser in Orange for a safety garment that doesn’t compromise on comfort or functionality, ensuring that you remain protected in a variety of work conditions.
Equip yourself with the ultimate protective gear - the Portwest Bizflame Rain Unlined Hi-Vis Antistatic FR Trouser in Orange. Tailored to cater to the demands of a challenging work environment, this garment marries function with comfort to provide a trouser that stands tall in the face of hazards.
Key Features:
Standards Compliance:
This garment strictly adheres to several safety and quality standards, assuring you of its reliability and efficiency in safeguarding you against multiple hazards. These include:
Choose the Portwest Bizflame Rain Unlined Hi-Vis Antistatic FR Trouser in Orange for a safety garment that doesn’t compromise on comfort or functionality, ensuring that you remain protected in a variety of work conditions.
Equip yourself with the ultimate protective gear - the Portwest Bizflame Rain Unlined Hi-Vis Antistatic FR Trouser in Orange. Tailored to cater to the demands of a challenging work environment, this garment marries function with comfort to provide a trouser that stands tall in the face of hazards.
Key Features:
Standards Compliance:
This garment strictly adheres to several safety and quality standards, assuring you of its reliability and efficiency in safeguarding you against multiple hazards. These include:
Choose the Portwest Bizflame Rain Unlined Hi-Vis Antistatic FR Trouser in Orange for a safety garment that doesn’t compromise on comfort or functionality, ensuring that you remain protected in a variety of work conditions.
Equip yourself with the ultimate protective gear - the Portwest Bizflame Rain Unlined Hi-Vis Antistatic FR Trouser in Orange. Tailored to cater to the demands of a challenging work environment, this garment marries function with comfort to provide a trouser that stands tall in the face of hazards.
Key Features:
Standards Compliance:
This garment strictly adheres to several safety and quality standards, assuring you of its reliability and efficiency in safeguarding you against multiple hazards. These include:
Choose the Portwest Bizflame Rain Unlined Hi-Vis Antistatic FR Trouser in Orange for a safety garment that doesn’t compromise on comfort or functionality, ensuring that you remain protected in a variety of work conditions.
Specifications are subject to change - See Terms & Conditions for more info
Portwest has been independently rated by Ecovadis for its environmental, social, and ethical performance and achieved a silver rating, meaning they are in the top 25% of globally rated companies.
The pillars taken into consideration include the environment, labour practices and human rights, ethics, and sustainable procurement.
This product conforms with essential health and safety requirements as set out in European Directives.
This product is CE marked as a Category 3 item for complex design.
This garment is made of a high-performance breathable fabric.
This features a fully elasticated waistband on the trouser which allows for all-day comfort for the wearer.
This garment has taped waterproof seams.
Wash at a Maximum Temperature of 40°C using a gentle wash cycle
Do not bleach this item
This item must not be tumbled dried
This item must be left to drip line dry
Do not iron this item
Do not dry clean this item
This item can only be washed a maximum of 12 times
EU Declaration of Conformity
